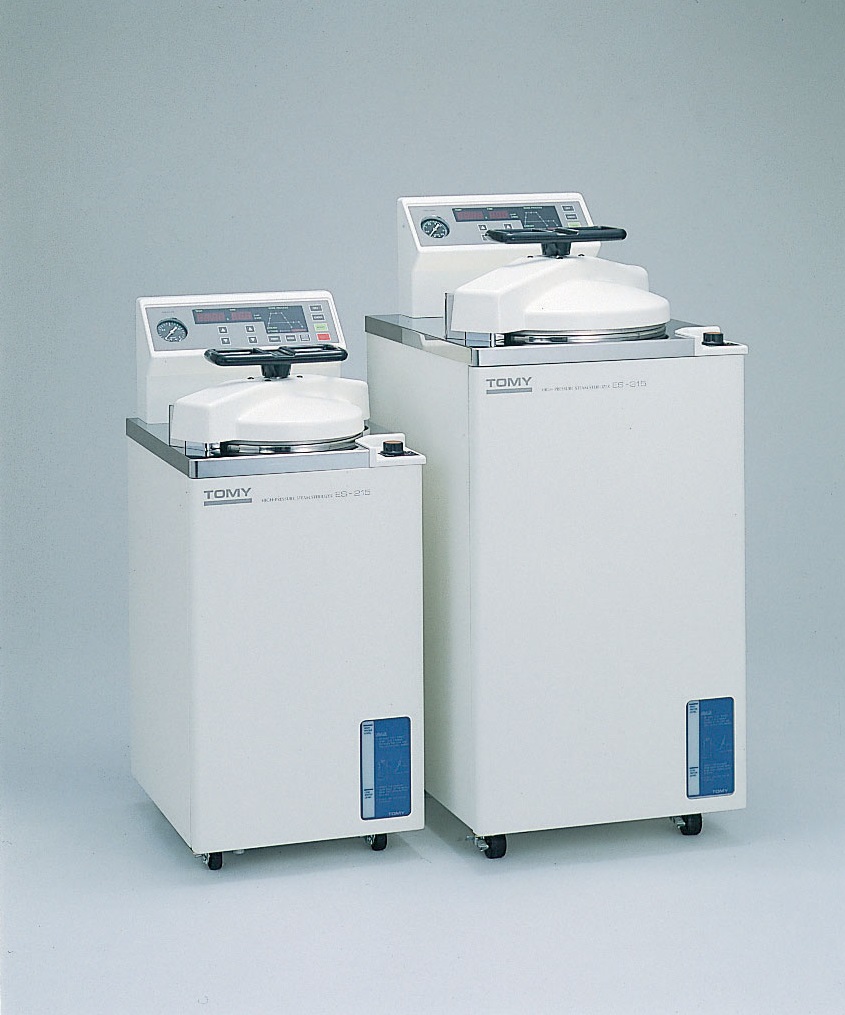

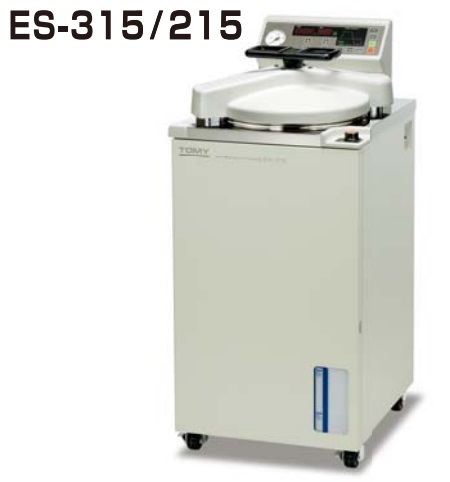

ES Series
오토클레이브 Autoclave > Steam Sterilizer > Gravity-Type Autoclave- 제품설명
-
- Autoclave, 멸균기
- 크기 : 22/53L
- 실험기구, 초자, 샘플, 폐기물, 폐배지 멸균 등에 적합
- Maker : TOMY / JAPAN
- 연락처
-
경기본사 : 031-790-1907 (내선1)
대전지사 : 042-824-5167
- http://www.digital-biology.co.jp/manufactured/products/es/index.html
- 실험실용 오토클레이브(멸균기)
- 불완전멸균상태방지
- 챔버 내부 과열방지
- 챔버 외부 과열방지
- 챔버 과압력 방지
- 전원을 키면 미리 설정된 값을 작동
| Specifications | |||
| Model | ES-215 | ES-315 | |
| Operating temperature range (during sterilizing) |
105 ~ 123℃ | 105 ~ 132℃ | |
| Operating Pressure Range | 0 ~ 127kPa | 0 ~ 186kPa | |
| Maximum Operating Pressure | 147kPa | 216kPa | |
| Temperature Control | Digital, microprocessor controlled | ||
| Temperature display / Display range | Digital / -15 ~ 180℃ | ||
| Pressure display / Display range | Analog / 0 ~ 250kPa | Analog / 0 ~ 400kPa | |
| Heat Source | 1.5kW electric heater | 2.0kW electric heater | |
| Timer control | Digital, microprocessor controlled | ||
| Timer display | Display | ||
| Timer display ranage | Sterilizing mode | 1 ~ 240 min, or continuous | |
| Sterilizing warming mode | 1 ~ 240 min (Sterilizing) / 1 ~ 8hours (warming) | ||
| Heating mode | 1 ~ 8hours | ||
| Start-timer setting range | 1 ~ 99hours in each operation mode | ||
| Memory function | A set of temperature and time setting in each operation mode | ||
| Safety devices | ● Inside the chamber overheat prevention, ● Outer wall of the cchamber overheat prevention ● Overpressure prevention, ● Temperature sensor disconnection prevention, ●Empty heating prevention ● Leakage breaker, ● Safety valve |
||
| malfunction prevention devices | ● Low water level detection, ● Exhaust valve knob open/close detection, ●Insufficient sterilization detection ● Chamber lid open/close detection |
||
| Leakage breaker | Rated breaking current: | 20A (120V), 15A(220 / 230 / 240V) | 30A (120V), 15A(220 / 230 / 240V) |
| Rated sensed current : | 30mA (120V), 10mA(220 / 230 / 240V) | ||
| Protection type | Class 1 Equipment | ||
| Operating environment | Ambient temperature | 5 ~ 35℃ | |
| Relative humidity | 30 ~ 85% | ||
| Atmospheric pressure | 700 ~ 1060hPa | ||
| Gradient | Within 2° | ||
| Dimensions | Ф248 x 543mm | Ф325 x 740mm | |
| Usable dimension | Ф236 x 450mm | Ф312 x 635mm | |
| Capacity of chamber | 22L | 53L | |
| Chamber material | SUS304 | ||
| Capacity / material of exhaust bottle | 3L / Polyethylene | ||
| Type / material of lid gasket | Accommodating internal pressure / silicone rubber | ||
| Dimensions of main unit (mm) | 400W x 460D x 720H (Height from floor to control panel:750) |
490W x 560D x 1090H (Height from floor to control panel:875) |
|
| Net weight | 50 kg | 80 kg | |
| Rated Voltage | AC 120 / 220 / 230 / 240 V | ||
| Power input | 15A (120V), 7A (220 / 230 / 240V) | 20A (120V), 10A (220V), 9A (230 / 240V) | |
| Power supply requirements | Single-phase 120V AC (50/60Hz) 15A or above | Single-phase 120V AC (50/60Hz) 20A or above | |
| Single-phase 220 / 230 / 240V AC (50/60Hz) 15A or above | |||
| Power consumption(calorific value) | 1.5kW (1290kcal/h) | 2kW (1720kcal/h) | |
| Accessories | ● Stainless steel basket with slatted bottom plate 1, ● Water level sensor 1, ● Inspection sheet 1, ● Warranty card 1, ● Customer card 1, ● Operator's manual 1, ●Clear plastic accessory case 1, ● Attachment screw for clear plastic accessory case 1 |
||
| Stainless basket 1 (Ф 224 x 376mm) | Stainless basket 2 (Ф 300 x 182mm) | ||
- 바스켓 및 버킷 요청에 따라 선택가능
- 요꼬가와 기록계(+데이터보드)
- IQOQPQ Documentation & Validation
