Small Universal Polarimeter
수동 선광계 Analyzer > Polarimeter > Visual & Automatic Circle Polarimeter- 제품설명
-
- Rugged visual polarimeter
- Three lighting units
- Ideal for school/education
- Maker : SCHMIDT+HAENSCH / GERMANY
- 연락처
-
경기본사 : 031-790-1907 (내선1)
대전지사 : 042-824-5167
NEW: Long-lasting LED illumination unit

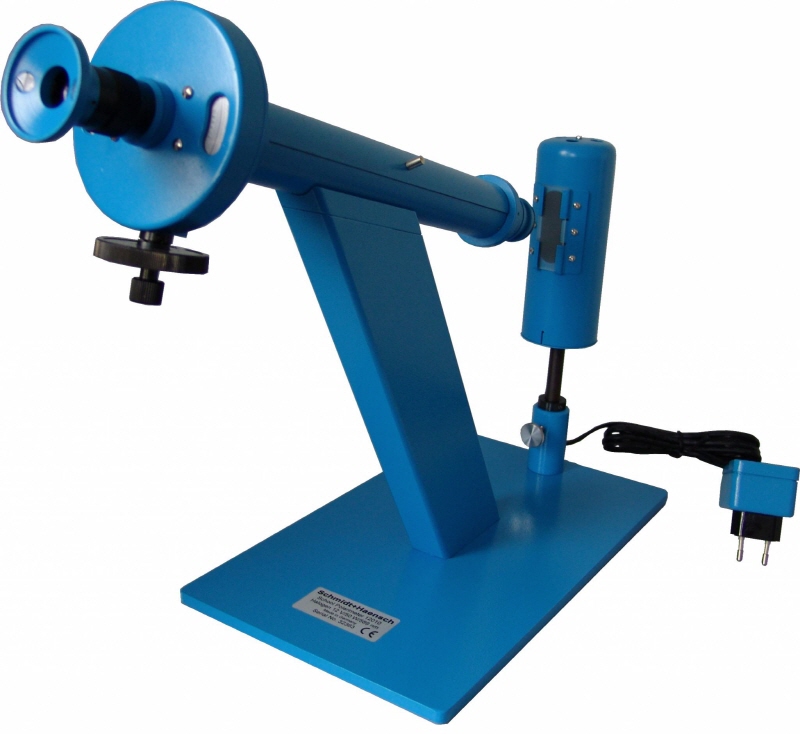

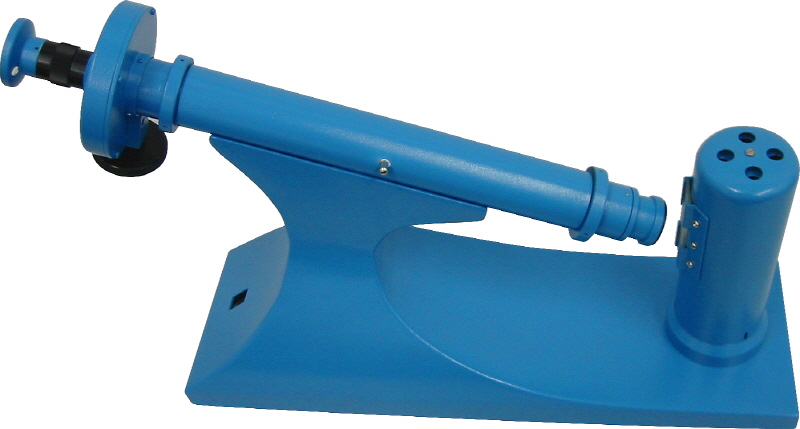

The Small Universal Polarimeter is a visual circle polarimeter suitable for school and education. The polarimeter has a circular scale of ±180° angular degrees divided into full degrees. Together with the Vernier scale rotations can be measured to an accuracy of 0.1° and with a little practice they can be estimated to an accuracy of 0.05°.
There are three possible lighting units:
- The LED unit is a very long lasting illumination unit (life time approx. 50.000 hours).
- The halogen lamp is less expensive and has a longer life time than spectral lamp. LED as well as are ready for use immediately upon switching on.
- The spectral lamp unit is recommended for higher absolute accuracy.
A sodium spectral lamp emits light of a defined wavelength (line spectrum). In order to block out undesired side spectral lines, coloured glass filter should be used. It also must be inserted into the light admission opening.
Visual circle polarimeter | SCHMIDT+HAENSCH
Main specifications
| Measurement scale | °Optical Rotation |
| Measuring range | ± 180°Z |
| Resolution | 1°Z |
| Precision | 0,1°Z** |
| Sensitivity | up to OD 3 |
| Wavelength | one fixed (546 oder 589 nm) |
| Measurement mode | visual |
Additional information
| Measuring tubes | up to 200 mm length |
| Ambient temperature | +10 – +40°C |
| Light source | LED, halogen or sodium spectral lamp |
| Operation | manual |
Standardmodelle
| VISPOL 589 (available with LED, halogen or sodium spectral lamp) VISPOL 546 (available with LED or halogen lamp) |
** Precision refers to physical standard conditions
