ATR-C
디지털 자동 굴절계 Analyzer > Refractometer > Digital Refractometer- 제품설명
-
- Economic model
- Can be coupled with PC
- Continuous measuring mode
- Peltier-thermostat optionally
- Extreme flat sample chamber
- Maker : SCHMIDT+HAENSCH / GERMANY
- 연락처
-
경기본사 : 031-790-1907 (내선1)
대전지사 : 042-824-5167
Basic model for standard applications

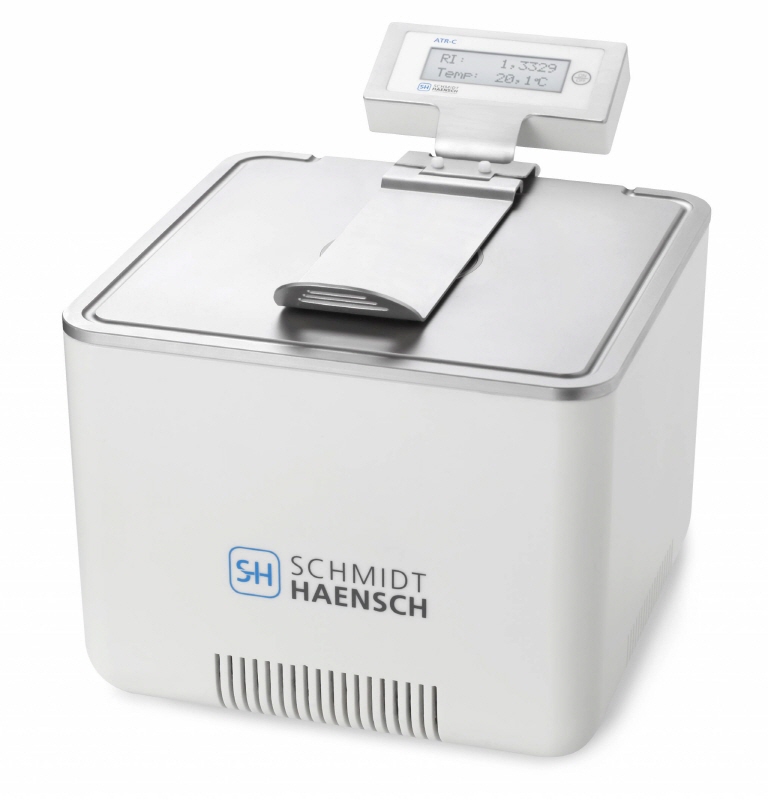

NEW: laboratory refractometer ATR-C
- Economic model for standard applications
- Robust and modern enclosure for rough environments
- Quality and quantity control of liquids
- Highly accurate and reproducible measuring results in no time at all
- Basic model without the possibility for sample heating or cooling
- Internal Peltier-thermostat optionally against extra fee
- Easy to clean and easy to handle sample chamber
- Continuous measurement
- Start-up, configuration, calibration via external PC
- Data display via two lines display (optional) or via external PC
- Easy to calibrate with sucrose solutions or certified Chemical Reference Materials (CRM)
- Documentation according to GLP/GMP, 21 CFR part 11 ready, software optionally available
- Energy saving LED light source
- Extremely low noise
- Minimal maintenance effort
- Remote diagnostics and maintenance of data
Main specifications
| Measuring scales | Refractive Index (RI) Sucrose (%Brix) Standard scales available Customised scales on request |
| Measuring range | 1,3200 - 1,5800 RI / 0 - 100 % Brix |
| Resolution | 0,0001 RI / 0,05 % Brix |
| Precision | ± 0,0001 RI / ± 0,05 % Brix |
| Reproducibility | ± 0,0001 RI / ± 0,05 % Brix |
| Measurement mode | Single sample |
Temperature
| Ambient temperature | +10 - +40 °C |
| Temperature measurement | NTC Sensor zur Temperaturmessung innerhalb des Prismas |
| Temperature control sample | Standard Version ohne Peltierthermostat / optional mit integriertem Peltierthermostat* |
| Temperature control range | +20 - +25 °C* |
| Temperature resolution | 0.01 °C* |
| Temperature precision | ± 0.03 °C* |
| Temperature reproducibility | ± 0.02 °C* |
| Temperature compensation Brix | +5 - +50 °C |
Additional information
| Prism | Saphire |
| Light source/wavelength | LED, interference filter 589 nm |
| Display | Two lines (optional) |
| Operation | Start-up, configuration, calibration via external PC |
| Interfaces/communication | 1xRS232, 1xUSB (B) |
Conformity
| Standards | International Pharmacopoeia, ASTM, AOAC, DIN, FDA, ICUMSA and others |
