HR Series
휴대용 굴절계 Analyzer > Refractometer > Hand Held Refractometer- 제품설명
-
- Perfect refractometer for field analysis
- Easy handling
- Different models available
- Maker : SCHMIDT+HAENSCH / GERMANY
- 연락처
-
경기본사 : 031-790-1907 (내선1)
대전지사 : 042-824-5167

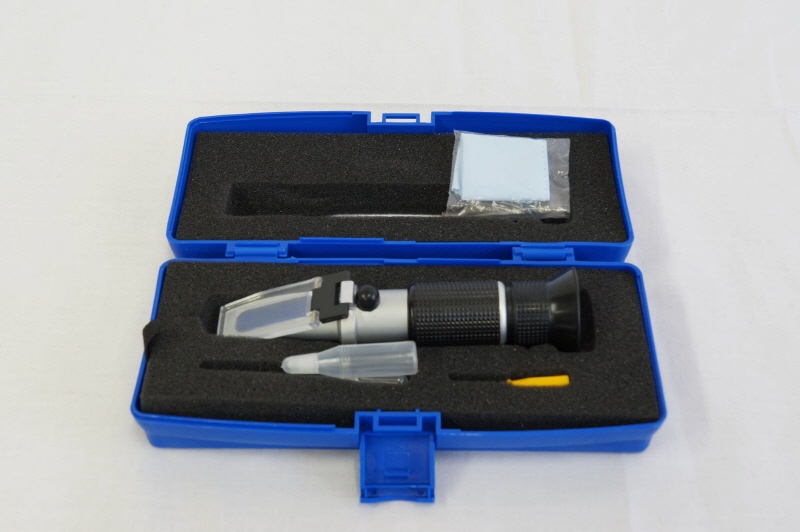

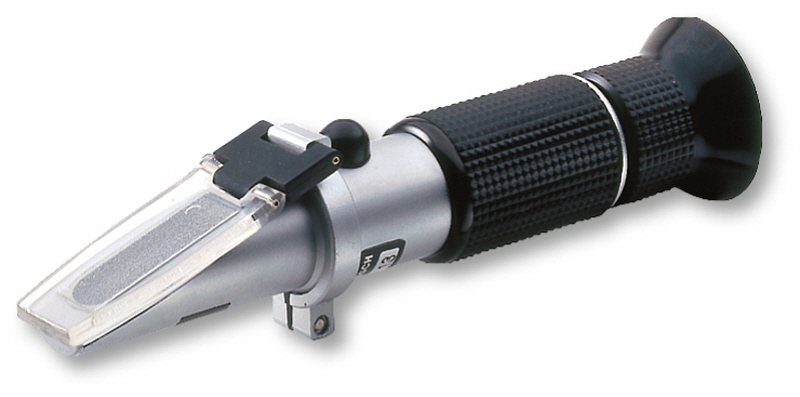

Visual handheld refractometer
Handheld refractometers are classic, visual refractometers and are used for the determination of the refractive index of liquid media of low or high viscosity. They are mainly used for quick on-the-spot-control of process streams and the field analysis in fruit and vegetable plantations. Different models of handheld refractometers for special application available. Determination of:
- % Brix (4 different measuring ranges available), % Oechsle
- Urine determination (0 12 g/l)
- Salinity tests (0 28 %)
- Wine measurements (0 32 %Bx; 0 140°Oe)
Main specifications
| Measuring scales | Different models available 4 ranges Sucrose (%Brix) % Oechsle % salinity Urine scale (g/d7) |
| Measuring range | 0 - 32 %Brix / 28 - 62 %Brix / 45 - 82 %Brix / 58 - 90 %Brix 0 - 140° Oe 0 - 12 g/dl/ 1.000 - 1.040 g/cm3 |
| Resolution | 0,2 %Brix / 0,2 %Brix / 0,5 %Brix / 0,5 %Brix 1° Oe 0,2 g/dl / 0,002 g/cm³ |
| Precision | depends on the user |
| Reproducibility | depends on the user |
| Measurement mode | Single sample |
Temperature
| Ambient temperature | +10 - +40 °C |
| Temperature measurement | no temperature measurement |
| Temperature compensation Brix | with external calculation |
Additional information
| Prism | Glass |
| Light source/wavelength | day light |
| Display | no display, visual instrument |
