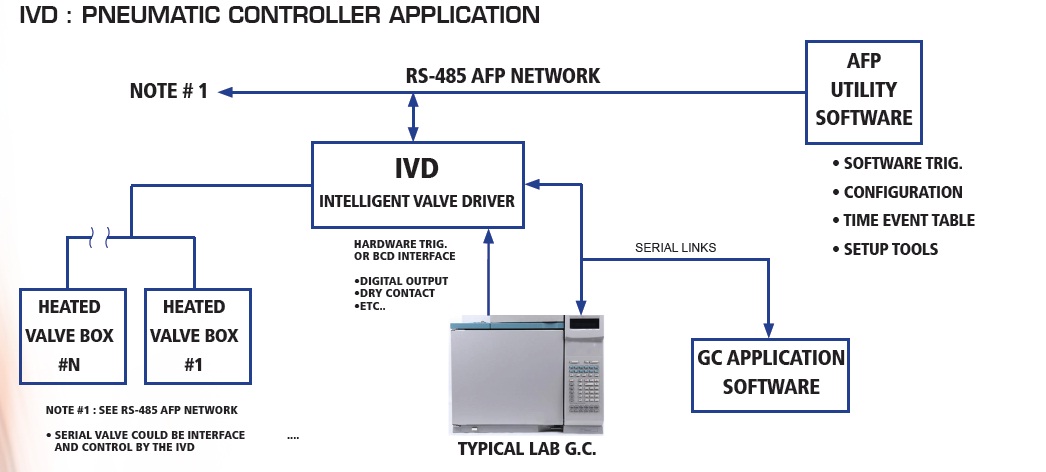

IVD: Intelligent Valve Driver
밸브드라이버 Gas > GC Products > Accessories- 제품설명
-
- RS-232와 USB 2.0 컨버터 가능
- Ethernet port 와 RS-232 port 가능
- 실시간 트리거 제어 가능
- 일반적인 디지털 입력
- 시간 순서 제어 가능
- Labview 로 프로그래밍 가능
- Maker : AFP / Canada
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*General specifications
| Specifications | Description |
| 8 bits micro controller | Flash program with boot loader |
| Real time clock | YY/MM/DD-HH:MM:SS |
| Data logging and configuration memory |
Flash memory in file format |
| Time event table | Flash memory in text file format |
| Power inlet internal connector | 2 wires connector to PCB |
| Master relay indicator | 1 LED for relay status |
| Led module | 1*8 LED indicator |
| USB indicator | 2 LED for Tx and Rx |
| Speed led | LED on RJ-45 connector |
| Link led | LED on RJ-45 connector |
| Status led | Processor hart beat led |
| LCD display | 4 lines of 40 characters |
| 25 Keys keyboard | 5*5 matrix decoder |
| Analog input | 2 digital to analog 10 bits |
| Analog output | one 0 to 5 volts 8 bits analog output |
| AFP Network adress selector | Jumper to select 41,42,43,44 |
| Operating temperature | Fahrenheit(℉): 32℉ to 158℉ Celsuis(℃): 0℃ to 70℃ |
