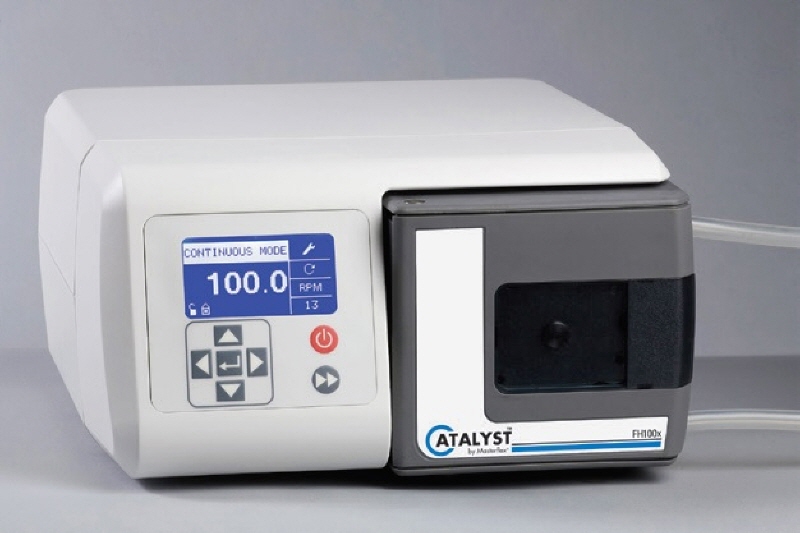

FH100 Series
튜빙펌프 Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Digital control
- 7가지 언어 선택 가능
- Pump Open lockout sensor
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
- Digital control
- LCD창을 통하여 모든 작동 수치 확인 가능
- 손쉽게 flow 컨트롤 가능
- 7가지 언어 선택 가능
- 최대 4.1bar까지 토충 가능
- Volume, time, flow rate 컨트롤 가능
- 프로그램 가능, Auto dispensing 가능
- Pump Open lockout sensor
| Flow range (ml/min) |
Tubing sizes accepted(mm ID) |
Speed range |
Speed control (repeatability) |
Remote control input | Reversible motor |
Power(50/60 Hz) | Catalog number |
Price | |
| VAC | Amps | ||||||||
| A. Catalyst FH100 pump accepts 1.6mm(thin-wall) tubing | |||||||||
| 0.5 to 3000 | 0.8, 1.6, 3.2, 4.8, 6.4, 8.0 |
4 to 400rpm | 0.25% | 4 to 20mA, 0 to 10V | Yes | 90 to 260 | 1.6 at 115 VAC 1.9 at 230 VAC |
GY-77722-00 | |
| B. Catalyst FH100X pump accepts 2.4mm(thick-wall) tubing | |||||||||
| 14 to 4000 | 4.8, 6.4, 8.0, 9.5 | 4 to 400rpm | 0.25% | 4 to 20mA, 0 to 10V | Yes | 90 to 260 | 1.6 at 115 VAC 1.9 at 230 VAC |
GY-77722-02 | |
| C. Catalyst FH100D pump accepts 1.6mm(thin-wall) tubing | |||||||||
| 0.5 to 3000 | 0.8, 1.6, 3.2, 4.8, 6.4, 8.0 |
4 to 400rpm | 0.25% | 0 to 20mA, 4 to 20mA, 0 to 10V scalable |
Yes | 90 to 260 | 1.6 at 115 VAC 1.9 at 230 VAC |
GY-77722-10 | |
| D. Catalyst FH100DX pump accepts 2.4mm(thick-wall) tubing | |||||||||
| 14 to 4000 | 4.8, 6.4, 8.0, 9.5 | 4 to 400rpm | 0.25% | 0 to 20mA, 4 to 20mA, 0 to 10V scalable |
Yes | 90 to 260 | 1.6 at 115 VAC 1.9 at 230 VAC |
GY-77722-12 | |
