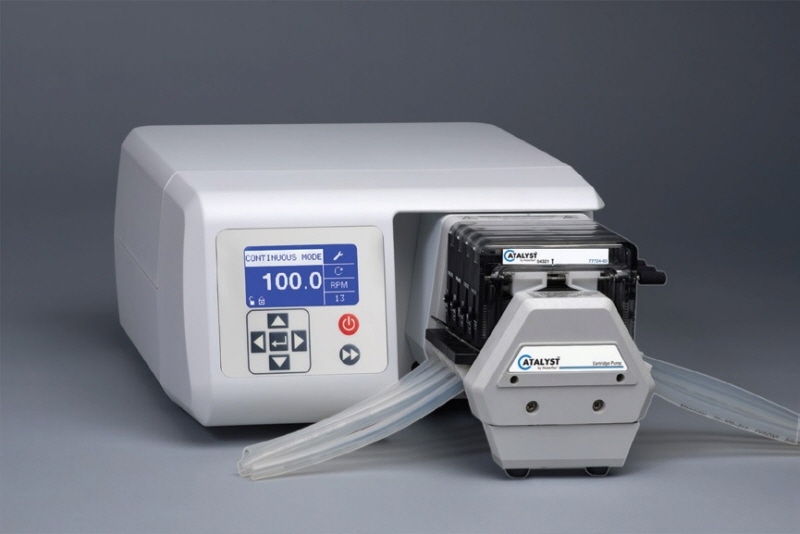

FH100M
튜빙펌프 Precision Pump > Peristaltic Pump > ~550ml/min- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
- 4,8,12채널
- 3,4,6,8 roller 선택 가능
- Cartridge type으로 멀티채널에서 손쉬운튜빙교체
- 모든 채널에서 높은 반복정밀도
- LCD를 통하여 멀티채널에 대한 유량 확인
- 튜빙을 통해 액체가 이송되어 펌프오염 없음
- PUMP SPEED or Flow Rate 를 digital로 표시
*Specifications
Speed range: 4 to 400 rpm
Speed control(repeatability): ±0.25%
Remote control input: 0 to 20mA, 4 to 20mA, 0 to 10V scalable
Reversible motor: yes
IP rating: IP31
Power: 90 to 260VAC, 50/60 Hz; 1.6A to 115 VAC, 1.9A at 230 VAC
Speed range: 4 to 400 rpm
Speed control(repeatability): ±0.25%
Remote control input: 0 to 20mA, 4 to 20mA, 0 to 10V scalable
Reversible motor: yes
IP rating: IP31
Power: 90 to 260VAC, 50/60 Hz; 1.6A to 115 VAC, 1.9A at 230 VAC
Model | Max no. of channels |
No. of rollers |
Cartridges included |
Flow range per channel(ml/min) |
Catalog number |
Price |
FH100M 4/6 FH100M 4/8 |
4 4 |
6 8 |
2 large 4 small |
0.21 to 280 0.013 to 67 |
GY-77724-00 GY-77724-02 |
|
FH100M 8/3 FH100M 8/4 |
8 8 |
3 4 |
4 large 8 small |
0.22 to 530 0.02 to 100 |
GY-77724-04 GY-77724-06 |
|
FH100M 12/6 FH100M 12/8 |
12 12 |
6 8 |
6 large 12 small |
0.033 to 56 0.002 to 14 |
GY-77724-08 GE-77724-10 |
