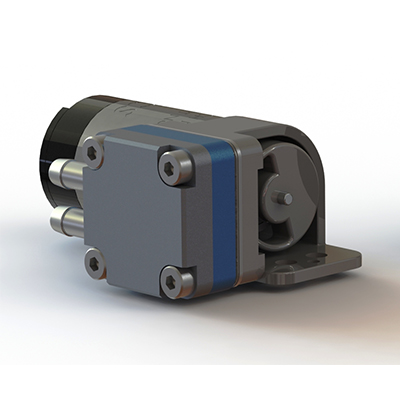

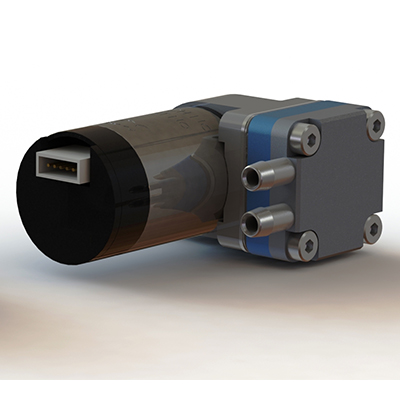

D250
소형 다이아프램펌프 Pump Module > Small Pump > Diaphragm Pump- 제품설명
-
- Flow Rate : 620 mL/min
- 배터리 또는 태양광으로 구동 가능
- 낮은 전력사용
- 소형, 경량 펌프
- IP 41
- Maker : TCS micropump / UK
- 연락처
- 경기본사 : 031-790-1907 (내선2) 대전지사 : 042-824-5167
-유체 전달 시스템 -의료 기기 윤활 시스템 -배터리 및 태양열 발전 시스템 냉각 시스템
*Materials
Wetted parts
-Anodised 6000 series aluminum
-316 stainless steel
-Viton or EPDM
-Polyacetal
-Glass filled nylon
Other
-Materials typical to a DC motor
*Performance data
-Small size: 55*31*17mm
-Weight: 26g
-Operating temp: -20 to 100 deg C
-IP rating(standard pumps): IP41
-Noise levels: 15dB
(Measured at a distance of 1m with a 50dB ambient noise level)
-MTBT: ('BL' stock pumps) 10,000hrs
('S' stock pumps) 5,000hrs
(Special variants available to order) >100,000hrs
Wetted parts
-Anodised 6000 series aluminum
-316 stainless steel
-Viton or EPDM
-Polyacetal
-Glass filled nylon
Other
-Materials typical to a DC motor
*Performance data
-Small size: 55*31*17mm
-Weight: 26g
-Operating temp: -20 to 100 deg C
-IP rating(standard pumps): IP41
-Noise levels: 15dB
(Measured at a distance of 1m with a 50dB ambient noise level)
-MTBT: ('BL' stock pumps) 10,000hrs
('S' stock pumps) 5,000hrs
(Special variants available to order) >100,000hrs
| D250BL-L | Input | Power | Flow | Pressure |
| (v) | (w) | (mLpm) | (psi) | |
| Liquid | 6 | 1.8 | 189 | 15 |
| Air | 6 | 0.5 | 610 | 5 |
