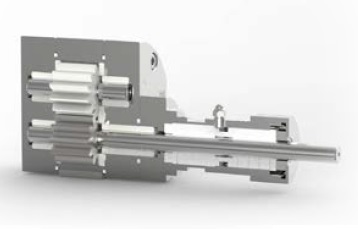

PUG Head
고유량 기어펌프 Pump Module > Gear Pump > ~18,000L/Hour- 제품설명
-
- PUG - metering, transfer & circulation
- 부식성 및 불충분한 윤활제 물질에 적합
- O&G, 석유화학, 발전 및 기타 공정 응용분야에서 다양한 화학 물질의 정확한 측정에 적합
- Viscosity : 1 - 10,000 cP
- Capacity rage : 1 - 52 cc/rev (6 - 5,400 L/h)
- Rotational speed : 300 - 1,725 rpm
- Max outlet pressure : 176 psi (12 -16 bar)
- Operating temperature : -50 ~ 160 °C
- Maker : MVV /ITALY
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
- Running directly at motor speed (8, 6 or 4 poles, 50 or 60 Hz)
- Packing seal as standard or other sealing systems (mechanical seal, mag drive)
- Pre-set for cooling/heating jacket
- 나사산 또는 플린지형 포트
- 6~5,400 LPH
- FDA certificates
| Applications | Materials | Shaft seal | On demand |
| Chemicals | ALSI 316 | Packing | Surface treatments |
| Oil and gas | Alloy 20 | Mechanical seal | Heating |
| Pharmachemical | Thermoplastics | Mag drive | Drives |
| Carbon | ATEX certificatie | ||
| Graphite |
| SI | PLZ | PUG | |
| Viscosity | Cp | 10-80,000 | 1-10,000 |
| Capacity range | cc/rev l/h |
0.3-9 0.2-81 |
1-52 6-5400 |
| Rotational speed | rpm | 10-300 | 300-1.725 |
| Max outlet pressure | psi bar |
1450 100 |
176 '12-16 |
| Operating temperature | °C | -20-180 | -50-160 |
