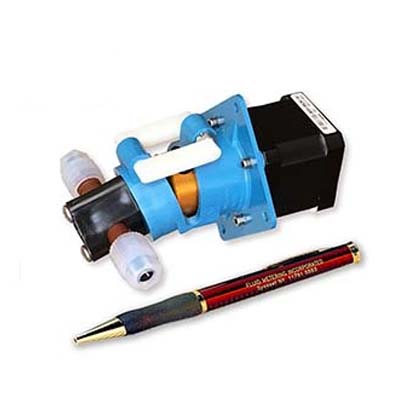

400μL Stroke Dispensing(STF1-9)
장비 장착용 피스톤 펌프 Pump Module > Piston Pump > Dispensing Pump- 제품설명
-
- Valveless 400 uL Dispensing Pump
- OEM Metering & Dispensing Application에 적합
- 컴팩트한 디자인
- Metering accuracy: ± 2%
- Dispense volume repeatability: ≤0.5%CV
- Flow rate adjustment: ± 25 μL / rev from nominal dispense volume
- Maker : FMI / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
- 9가지의 Pump Drive 및 4개의 Pump Head - 36가지 구성 가능
- 피스톤이 클수록 Dispense / Metering Rate는 높아짐
- FMI의 RHpump head를 사용하도록 사용자 지정 가능
- Metering accuracy : ± 2%
- Dispense volume repeatability: ≤0.5%CV
- Flow rate adjustment: ± 25 μL / rev from nominal dispense volume
- Sapphire-hard, 치수 안정성이 높은 세라믹 내부 구성 요소
*Pump drives
*Pump head specifications
*Pump specifications
Dimensions: 4.7"*1.67"*1.67"(119*42.4*42.4mm)
Shipping weight: 0.85lb(0.39kg) approx.
Electrical: Rated current-2.0Amps/Phase
Motor:
17 frame stepper motor
direction set to clockwise rotation
Max. operating pressure: 15psig
Max. operating temperature: 40℃
| Pump drive P/N | Nominal dispense volume | Max flow @ 1000RPM |
| mL/REV | mL/MIN | |
| STF1 | 0.2 | 200 |
| STF2 | 0.225 | 225 |
| STF3 | 0.25 | 250 |
| STF4 | 0.275 | 275 |
| STF5 | 0.3 | 300 |
| STF6 | 0.325 | 325 |
| STF7 | 0.35 | 350 |
| STF8 | 0.375 | 375 |
| STF9 | 0.4 | 400 |
*Pump head specifications
| Pump head P/N | Materials of Construction | Application |
| H9CKC | Ceramic(Alumina) PVDF |
Metering |
| H9CKCLF | Ceramic(Alumina) PVDF |
Dispensing |
| H9CTC | Ceramic(Alumina) ETFE/PTFE |
Metering |
| H9CTCLF | Ceramic(Alumina) ETFE |
Dispensing |
*Pump specifications
Dimensions: 4.7"*1.67"*1.67"(119*42.4*42.4mm)
Shipping weight: 0.85lb(0.39kg) approx.
Electrical: Rated current-2.0Amps/Phase
Motor:
17 frame stepper motor
direction set to clockwise rotation
Max. operating pressure: 15psig
Max. operating temperature: 40℃
