Laboratory & Industrial(QDX)

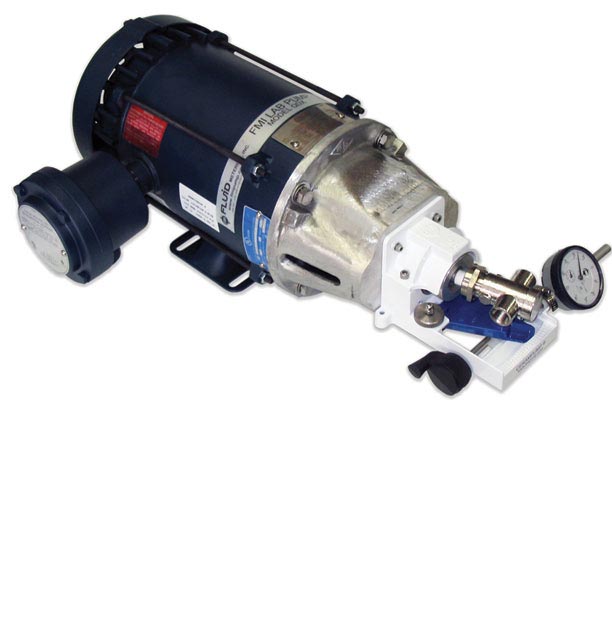

로터리 피스톤 펌프 Precision Pump > Piston Pump > ~2,300ml/min- 제품설명
-
- 밸브가 없어 막힘이 없음
- 유량 0~2208ml/min까지 조절 가능
- Drift-free performance
- UL, CE, RoHS 승인 제품
- Maker : FMI / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
- 밸브가 없어 막힘이 없음
- 유량 0~2208ml/min까지 조절 가능
- Drift-free performance
- UL, CE, RoHS 승인 제품
- CLASS I, CLASS II, Groups E, F, and G, NEMA frame 56 face-mount
| *Flow/Pressure specification: | ||
| Max flow/Pressure | ||
| mL/min | PSIG | BAR |
| 43.13 | 100 | 6.9 |
| 86.25 | 100 | 6.9 |
| 138 | 100 | 6.9 |
| 172.5 | 100 | 6.9 |
| 552.0* | 100 | 6.9 |
| 1242.0* | 100 | 6.9 |
| 2208.0* | 25 | 1.72 |
| *Pump specifications | ||
| Dimensions : 17 3/4" x 6 7/8" x 8 1/2" wide (451 * 175 * 216mm) | ||
| Shipping weight : 50b(23kg) | ||
| Electical : 115/230VAC, 60Hz, Single phase, 1/3 hp, 1725rpm | ||
| 6.6 amps @ 115 VAC and 3.3 amps@230 VAC | ||
| Pigtail leads for conduit connection | ||
| Ball beraing, totally and fan cooled | ||

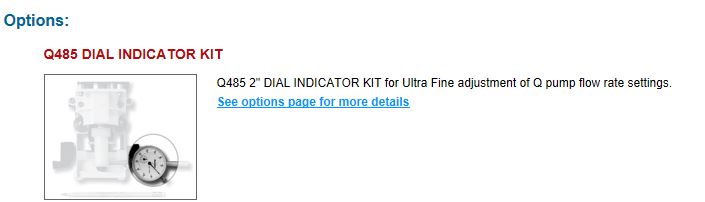

Q485 DIAL INDICATOR KIT
Q485 2" DIAL INDICATOR KIT for Ultra Fine adjustment of Q pump flows ate settings
Q485 2" DIAL INDICATOR KIT for Ultra Fine adjustment of Q pump flows ate settings
