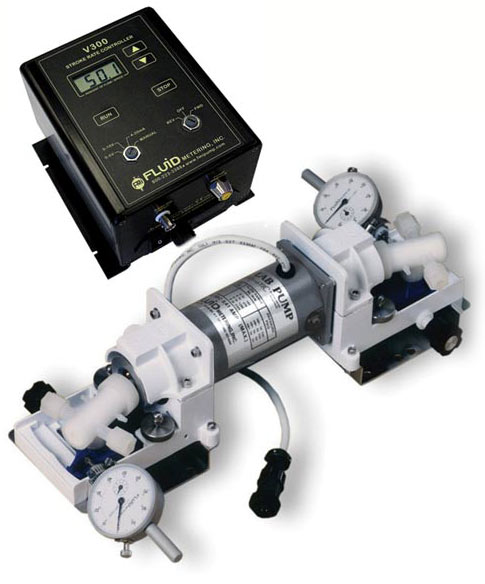

Variable Speed(Q2V)
로터리 피스톤 펌프(속도조절가능) Precision Pump > Piston Pump > ~2,300ml/min- 제품설명
-
- 90~1800 stroke/min으로 속도 조절 가능
- V300컨토롤러로 쉽게 컨트롤 가능
- Q2V Ratio-Matic® duplex 사용시 맥동을 50%감소
- Maker : FMI / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
- 90~1800 stroke/min으로 속도 조절 가능
- V300컨토롤러로 쉽게 컨트롤 가능
- Q2V Ratio-Matic® duplex 사용시 맥동을 50%감소
*FLOW/PRESSURE specifications
Pump specifications
Dimensions : 15" x 4 7/8" x 5 1/8" wide (381*124*130mm)
Shipping weight :
QW
Q2V- 15lb(6.75kg)
V300- 5lb(2.25kg)
Electrical : 1800rpm Totally enclosed, Not ventilated(TENV)motor
| Max flow/pressure | Piston code | |||
| ml/min | Gal/Hr | PSIG | BAR | |
| 90 | 1.42 | 100 | 6.90 | RH00 |
| 180 | 2.8 | 100 | 6.90 | RH0 |
| 288 | 4.4 | 100 | 6.90 | Q0 |
| 360 | 5.6 | 100 | 6.90 | RH1 |
| 1152* | 18.2 | 100 | 6.90 | Q1 |
| 2592* | 40.8 | 50 | 3.45 | Q2 |
| 4608* | 71.8 | 25 | 1.72 | Q3 |
Pump specifications
Dimensions : 15" x 4 7/8" x 5 1/8" wide (381*124*130mm)
Shipping weight :
QW
Q2V- 15lb(6.75kg)
V300- 5lb(2.25kg)
Electrical : 1800rpm Totally enclosed, Not ventilated(TENV)motor
*Options
Q485 DIAL INDICATOR KIT
Q485 2" DIAL INDICATOR KIT for Ultra Fine adjustment of Q pump flow rate settings
Q485 DIAL INDICATOR KIT
Q485 2" DIAL INDICATOR KIT for Ultra Fine adjustment of Q pump flow rate settings
