- Flow Rate: 0.001 min 3700 max ml/m
- Speed: 1 min 240 max rpm

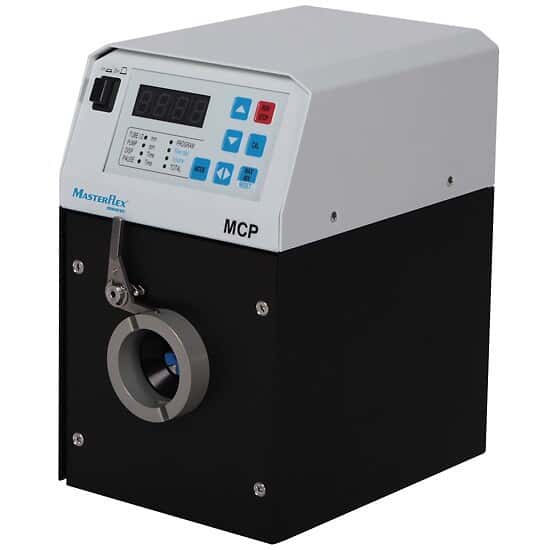

- Operating Panel
- 7-button membrane key-pad
- LED display
- Operating Modes
- Pumping by drive speed (rpm)
- Pumping by flow rate (ml/min)
- Factory-set flow rates for all available tube sizes
- Dispensing by volume (ml)
- Dispensing by time (0.1s up to 999hrs)
- Dispensing by volume within a pre-set time
- Interval dispensing by volume with a pause
- Interval dispensing by time with a pause
- Setting the number of dispensing cycles
- Pause time setting (from 0.1s up to 999hrs)
- Roller back-steps for drip-free dispensing
- Reversible rotation direction
- Calibrating Functions
- For flow rate (ml/min)
- For dispensing volume (ml)

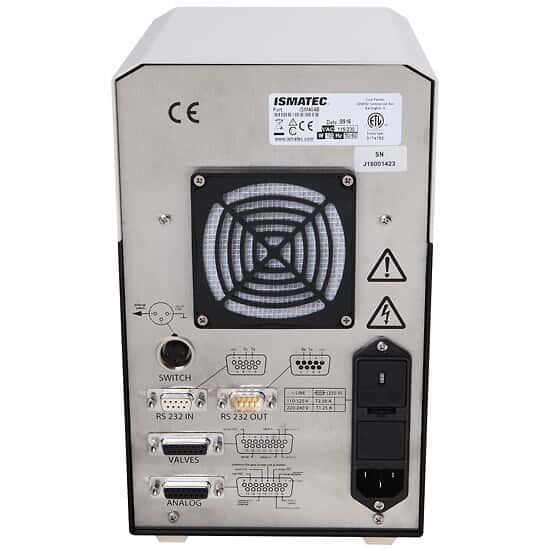

- Interfaces
- RS232 "in" : for operation controlling via PC
- RS232 "out" : for cascading up to 8 pumps
- Analog Input : Speed control (05 or 010V / 020 or 420mA)
- Analog Output : Speed monitoring (010VDC or 012 kHz)
- Digital Input : Start/Stop, rotation direction, autostart
