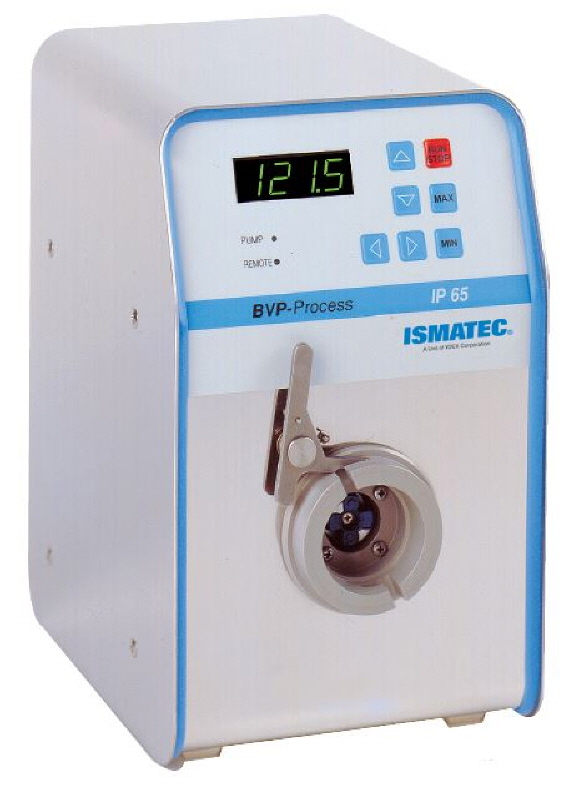

BVP Process
튜빙펌프 (BVP Process) Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- 0.001-3,700 ml/min
- 20개 이상의 pump head 사용 가능
- Protection rate : IP 65
- RPM 유량 조절
- Maker : Masterflex / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167

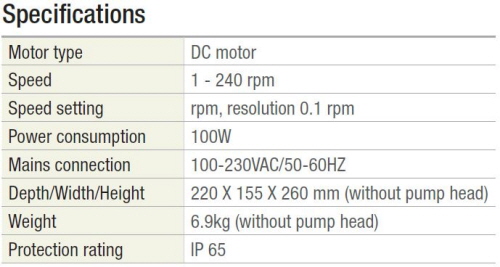

- Flow Rate: 0.003 min 3700 max ml/min
- Speed: 2.4 min 240 max rpm
- Operating Panel
- 4-button key-pad
- 3-digit potentiometer
- Operating Modes
- Power ON/OFF
- RUN / STOP
- Speed Setting, adjustable in 0.1% steps
- MAX / LOW Speed
- Rotation Direction
- Interfaces
- Analog Input : Speed control (0-5 or 0-10V / 0-20 or 4-20mA)
- Analog Output : Speed monitoring (0-10VDC or 0-12 kHz)
- Digital Input : Start/stop, rotation direction
