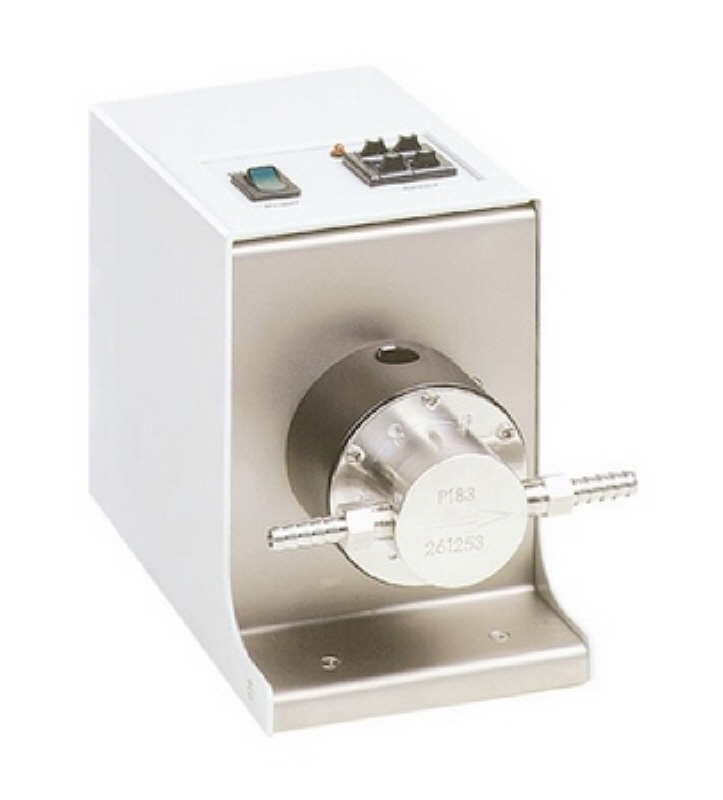

Reglo-Z Analog
기어펌프 Precision Pump > Gear Pump > Pump Drive- 제품설명
-
- 1-3,290 ml/min
- 높은 재현성
- 백 단위까지 Speed setting 가능
- Maker : ISMATEC / USA
정량펌프,정밀펌프,고압펌프,피스톤펌프,주사기펌프,튜빙펌프,연동펌프,튜브펌프,피스톤펌프,튜브연동펌프,기어펌프,다이어프램펌프,솔레노이드펌프,마이크로펌프,마그네틱펌프,원심펌프,정밀정량펌프
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
- Differential Pressure : 1 max Bar
- Flow Rate : 0.85 min 3290 max ml/min
- Speed : 50 min 5000 max rpm
- Operating Panel
- Power Switch
- 2-digit potentiometer
- Operating Modes
- RUN / STOP
- Speed Setting
- Interfaces
- Analog Input : Speed control (0-5 or 0-10V / 0-20 or 4-20mA)
- Analog Output : Speed monitoring (0-10 kHz)
- Digital Input : Start/Stop
