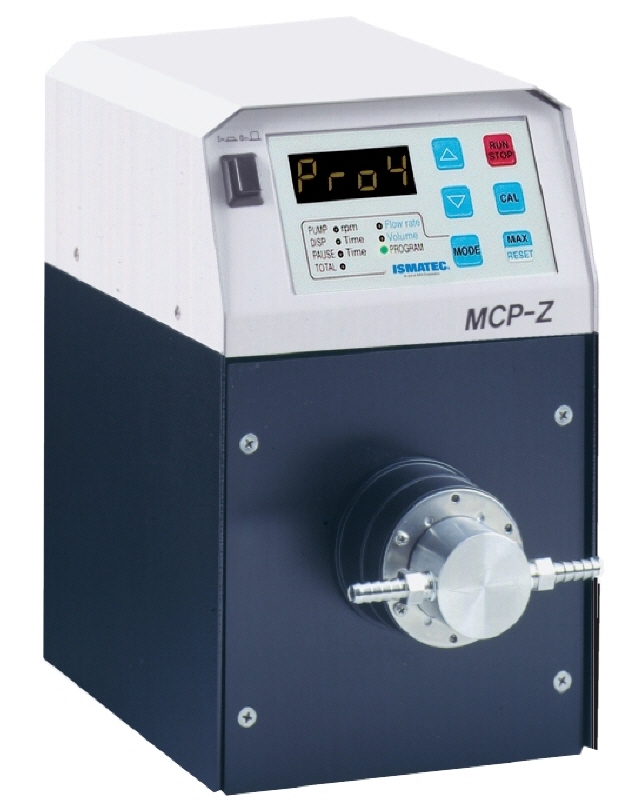

MCP-Z Standard
기어펌프 Precision Pump > Gear Pump > Pump Drive- 제품설명
-
- 1-6,500ml/min
- 견고한 Gear pump drive
- 멤브레인 키패드, LED display
- RS232통신을 통한 PC컨트롤
- 응용 Parameter프로그램 4개까지 저장
- Flow rate, RPM, Volume으로 컨트롤 가능
- Maker : ISMATEC / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167

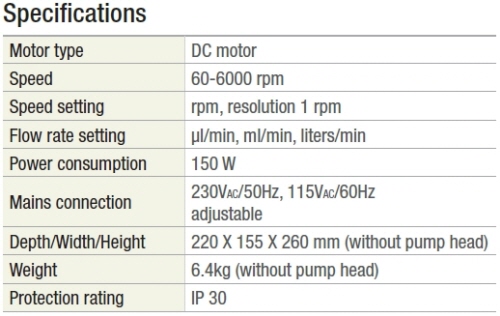

- Flow Rate : 1 min 6,500 max ml/min
- Speed : 60 min 6,000 max rpm
- Operating Panel
- 4-button key-pad
- 3-digit potentiometer
- Operating Modes
- Power ON/OFF
- RUN / STOP
- Speed Setting, adjustable in 0.1% steps
- MAX / LOW Speed
- Rotation Direction
- Interfaces
- Analog Input : Speed control (05 or 010V / 020 or 420mA)
- Analog Output : Speed monitoring (010VDC or 012 kHz)
- Digital Input : Start/stop, rotation direction
