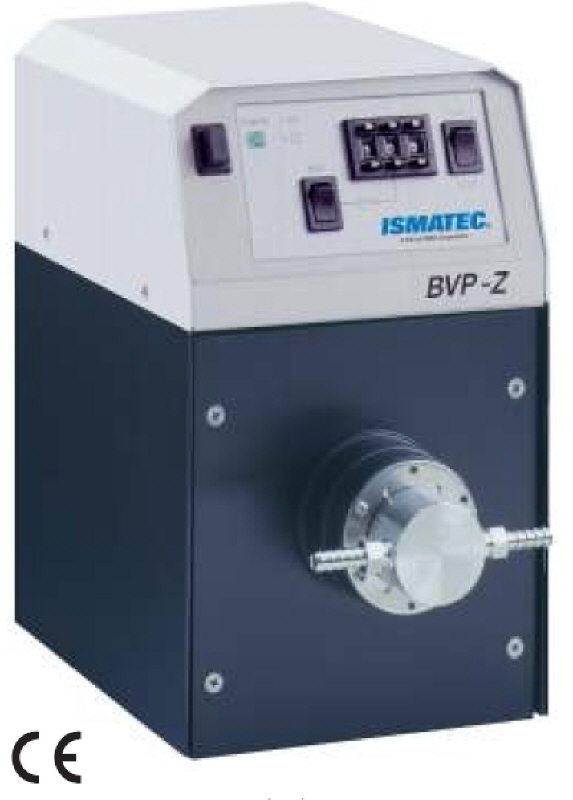

BVP-Z Standard
기어펌프 Precision Pump > Gear Pump > Pump Drive- 제품설명
-
- 1-6,500ml/min
- 백 단위까지 Speed setting 가능
- 5.2bar까지의 Differential pressure
- Maker : ISMATEC / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
- Flow Rate : 1 min 6,500 max ml/min
- Speed : 60 min 6,000 max rpm
- Operating Panel
- 3-button key-pad
- 3-digit potentiometer
- Operating Modes
- Power ON/OFF
- RUN / STOP
- Speed Setting
- Max. Speed
- Interfaces
- Analog Input : Speed control (05 or 010V / 0-20 or 420mA)
- Analog Output : Speed monitoring (010VDC or 012 kHz)
- Digital Input : Start/Stop, autostart
