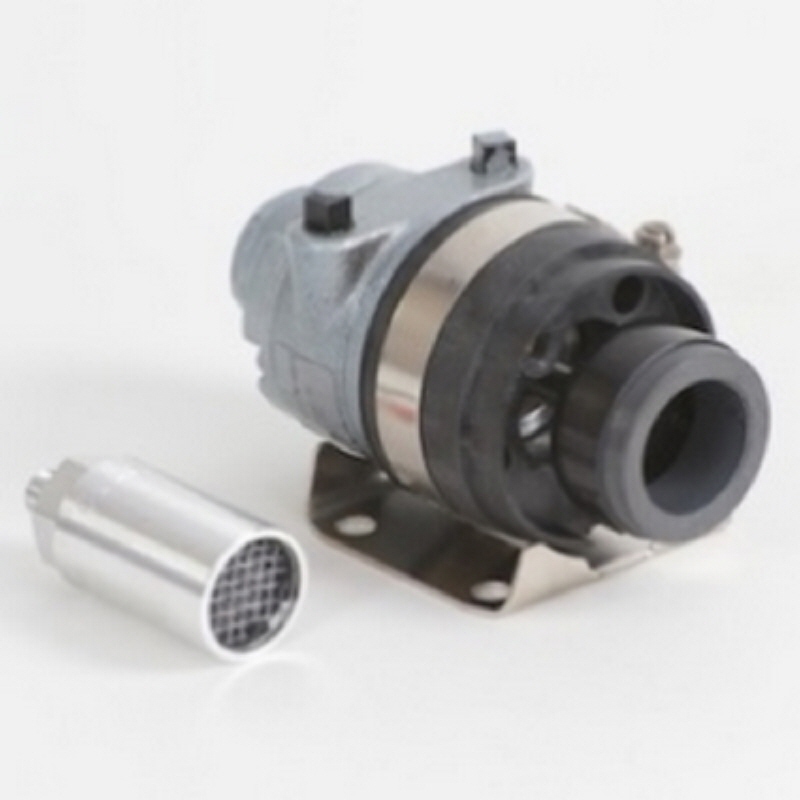

Air Motors
기어펌프 드라이브(Air Motor) Pump Module > Gear Pump > Pump Drive- 제품설명
-
- High Speed CapabilityM
- 안전성이 높은 구조
- Maker : Micropump / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
"
Performance Summary
| Drive Type | Explosion Proof |
|---|---|
| Speed (min) | 500 RPM |
| Speed (max) | 10,000 RPM |
| Power Source | 5-100 psig |
| Mount | B-Mount |
| Speed Control | Air Pressure |
| Connection | 1/8" NPT Ports |
| Enclosure | ATEX (II 2 GD EEX c T4) |
| Torque (max) | 50 oz-in |
| Nominal Watts | 246 W |
| Weight | 2.5 lbs |
| Product Number | 80155,20061 |
