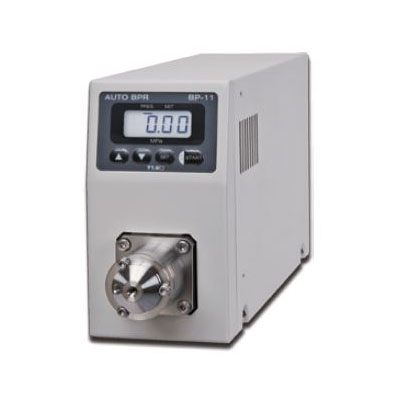

Automatic Back Pressure Regulator (For UI-22 Series)

자동 BPR (UI-22 Sereis용) Precision Pump > High Pressure Piston Pump > Back Pressure Regulator
제품설명
  • 가변 펌프 압력을 실시간으로 추적하여 일관된 압력 제공
  • FLOM사의 UI-22 Series와 함께 사용
  • 사용 가능한 유량 : 0.1~100 ml/min
  • 선택 가능한 재질 : SUS, PFA / PCTFE, PFA
  • Maker : FLOM / JAPAN
정량펌프,정밀펌프,고압펌프,피스톤펌프,주사기펌프,튜빙펌프,연동펌프,튜브펌프,피스톤펌프,튜브연동펌프,기어펌프,다이어프램펌프,솔레노이드펌프,마이크로펌프,마그네틱펌프,원심펌프,정밀정량펌프
연락처
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167

Product name Auto BPR
P/N BP-11S BP-11D
Wetted material SUS, PFA PCTFE, PFA
Fluid path diameter 0.6mm
Pressure range 0.10~5.00MPa
Flow rate 0.1~100ml/min
Pressure control rage 0.5~5.00MPa
Control accuracy  ±0.1MPa
Pressure signal uses pressure signal from UI-22 [DC1-DV]
Remote control RS232C, RS485, START-IN, READY-OUT
Dimensions 144(W)*79*(H)*240(D)mm excluding protuberances
Weight  Approx. 2.7kg
Order code SBP-F012 SBP-F019
