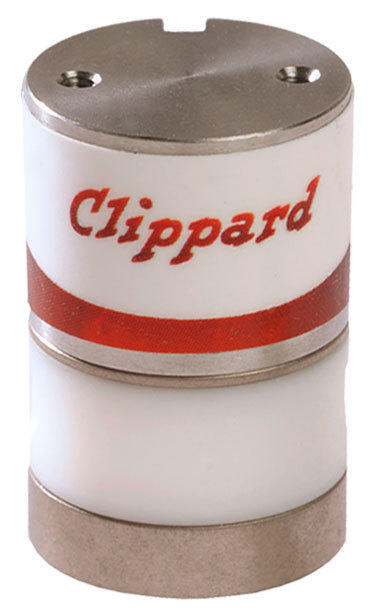

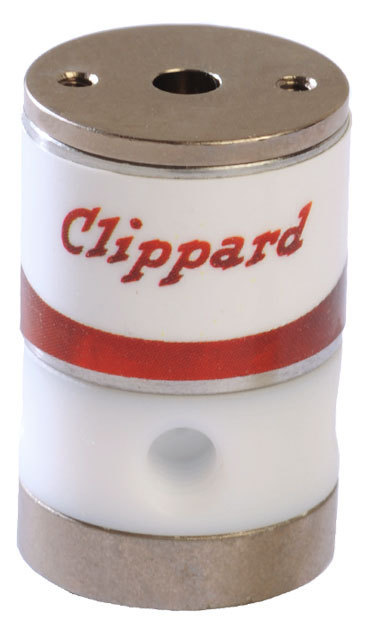

M-NIV Series PTFE Media Isolation Valves (standard)
솔레노이드 밸브 (metric 버전) Valve > Valve Module > Solenoid valve- 제품설명
-
- 2-way, 3-way solenoid valve (metric version)
- Normally-open, Normally-closed (2-way valve)
- Selector, Diverter (3-way valve)
- Maker : Clippard / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
| STANDARD VALVES | |||||||||||||
| Fig. | Standard Valve Dimensions - See figures 1-5, below | P/N | |||||||||||
| Type | Orifice | Flow @ 2 bar |
Ports | A | B | C | D | E | F | 12 VDC | 24 VDC | ||
| 2/2 Normally- Closed |
1.0 | 6 l/min | #10-32 | 1 | 19.1 | 40.4 | 13.0 | M2*0.4 5.5mm deep |
14.7 | n/a | M-NR1-2-12 | M-NR1-2-24 | |
| 1.6 | 16 l/min | 1/4-28 | 2 | 25.4 | 50.5 | 18.0 | M3*0.5 6.3mm deep |
17.8 | n/a | M-NR2-2-12 | M-NR2-2-24 | ||
| 2.4 | 38 l/min | 1/4-28 | 4 | 31.8 | 58.4 | 23.0 | M3*0.5 5.5mm deep |
18.2 | 38.1 | M-NR3-2-12 | M-NR3-2-24 | ||
| 4.0 | 58 l/min | G1/8 | 4 | 38.1 | 64.1 | 29.0 | M3*0.5 5.5mm deep |
19.8 | 44.5 | M-NR4-2-12 | M-NR4-2-24 | ||
| 2/2 Normally- Open |
1.0 | 6 l/min | #10-32 | 1 | 19.1 | 40.6 | 13.0 | M2*0.4 5.5mm deep |
14.7 | n/a | M-NR1O-2-12 | M-NR1O-2-24 | |
| 1.6 | 16 l/min | 1/4-28 | 3 | 25.4 | 50.6 | 18.0 | M3*0.5 6.3mm deep |
17.8 | n/a | M-NR2O-2-12 | M-NR2O-2-24 | ||
| 2.4 | 38 l/min | 1/4-28 | 5 | 31.8 | 57.1 | 23.0 | M3*0.5 5.5mm deep |
18.2 | 38.1 | M-NR3O-2-12 | M-NR3O-2-24 | ||
| 4.0 | 58 l/min | G1/8 | 5 | 38.1 | 62.8 | 29.0 | M3*0.5 5.5mm deep |
19.8 | 44.5 | M-NR4O-2-12 | M-NR4O-2-24 | ||
| 3/2 Selector/ Diverter |
1.0 | 6 l/min | #10-32 | 1 | 19.1 | 40.6 | 13.0 | M2*0.4 5.5mm deep |
14.7 | n/a | M-NR1-3-12 | M-NR1-3-24 | |
| 1.6 | 16 l/min | 1/4-28 | 3 | 25.4 | 50.6 | 18.0 | M3*0.5 6.3mm deep |
17.8 | n/a | M-NR2-3-12 | M-NR2-3-24 | ||
| 2.4 | 28 l/min | 1/4-28 | 5 | 31.8 | 57.1 | 23.0 | M3*0.5 5.5mm deep |
18.2 | 38.1 | M-NR3-3-12 | M-NR3-3-24 | ||
| 4.0 | 58 l/min | G1/8 | 5 | 38.1 | 62.8 | 29.0 | M3*0.5 5.5mm deep |
19.8 | 44.5 | M-NR4-3-12 | M-NR4-3-24 | ||
-저 전력 소비, 소형, 경량 디자인
-양방향 컨트롤
-Dead volume 최소화
-All wetted areas PTFE
-부식성 유체에 사용 가능
-High cycle life
-빠른 제어 반응 시간
-leak 방지 디자인
-밸브 몸체, 재질, threads 사양, 압력 사양 커스텀 제작 가능
-CE, RoHS 규격 준수
-양방향 컨트롤
-Dead volume 최소화
-All wetted areas PTFE
-부식성 유체에 사용 가능
-High cycle life
-빠른 제어 반응 시간
-leak 방지 디자인
-밸브 몸체, 재질, threads 사양, 압력 사양 커스텀 제작 가능
-CE, RoHS 규격 준수
| SPECIFICATIONS | |
| Valve type | 2/2 normally-closed, 2/2 normally-open 3/2 selector/diverter |
| Medium | Air, water, gas, compatible fluids |
| Max. Coli temp. rating | 70℃ |
| Operating pressure | Vacuum to 2 bar(additional options available*) |
| Flow | 6 to 58 l/min.air @ 2 bar |
| Power consumption | 1.0 to 7.2 watts |
| Response time | 5 to 20ms typ |
| Electrical connections | 450mm wire leads |
| Voltage | 12 or 24 VDC (additional options available*) |
| Ports | #10-32, 1/4-28, G1/8 or manifold |
| Mounting | M2, M3 or manifold (3mm thru hole) |
| Wetted materials | PTFE (Peek, PCTFE & PPS available*) |
| CE, RoHS compliant | |
