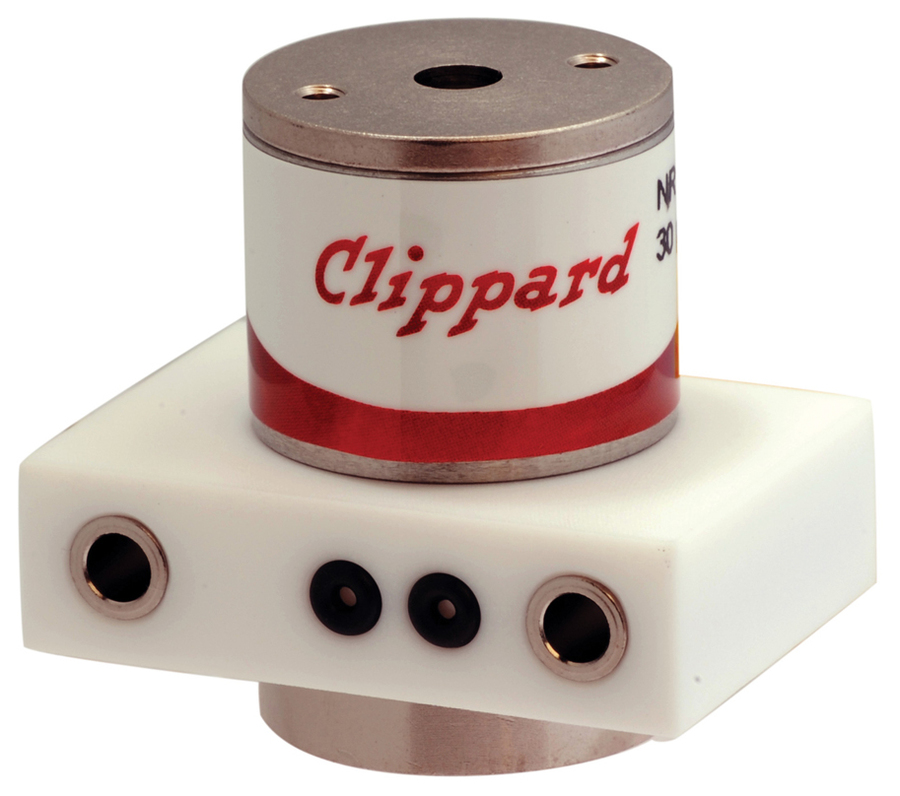

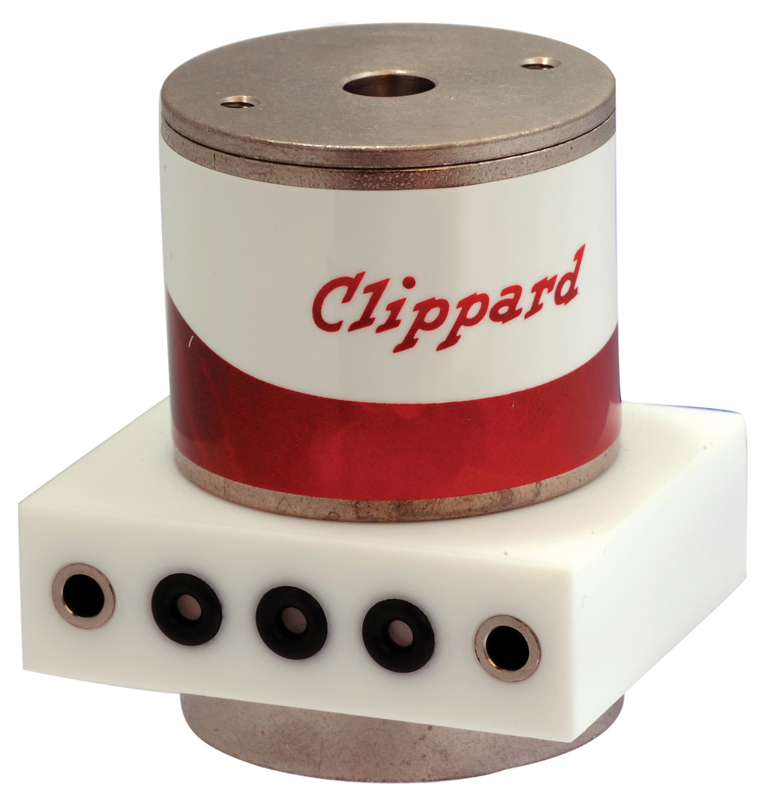

M-NIV Series PTFE Media Isolation Valves (manifold)
매니폴드형 솔레노이드 밸브 (metric version) Valve > Valve Module > Solenoid valve- 제품설명
-
- 매니폴드형 솔레노이드 밸브 (metric version)
- 2-way, 3-way solenoid valve
- Normally-open, Normally-closed (2-way valve)
- Selector, Diverter (3-way valve)
- Maker : Clippard / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
| MANIFOLD VALVES | |||||||||||||
| Fig. | Manifold Dimensions - See figures 6-8, below | P/N | |||||||||||
| Type | Orifice | Flow @ 2 bar |
A | B | C | D | E | F | G | H | 12VDC | 24VDC | |
| 2/2 Normally- closed |
1.0 | 6 l/min | 6 | 19.1 | 29.3 | 9.2 | 31.8 | 22.2 | 22.2 | 4.8 | 11.1 | NR1-2M-12 | NR1-2M-24 |
| 1.6 | 16 l/min | 7 | 25.4 | 37.8 | 11.3 | 31.8 | 28.6 | 25.4 | 6.4 | 12.7 | NR2-2M-12 | NR2-2M-24 | |
| 2.4 | 38 l/min | 7 | 31.8 | 47.3 | 12.7 | 41.3 | 34.9 | 31.8 | 8.0 | 15.9 | NR3-2M-12 | NR3-2M-24 | |
| 4.0 | 58 l/min | 7 | 38.1 | 53.0 | 14.3 | 47.6 | 41.3 | 38.1 | 9.5 | 19.1 | NR4-2M-12 | NR4-2M-24 | |
| 2/2 Normally- open |
1.0 | 6 l/min | 6 | 19.1 | 29.5 | 9.2 | 31.8 | 22.2 | 22.2 | 4.8 | 11.1 | NR1O-2M-12 | NR10-2M-24 |
| 1.6 | 16 l/min | 8 | 25.4 | 37.9 | 11.3 | 31.8 | 28.6 | 25.4 | 6.4 | 12.7 | NR2O-2M-12 | NR20-2M-24 | |
| 2.4 | 38 l/min | 8 | 31.8 | 46.1 | 12.7 | 41.3 | 34.9 | 31.8 | 8.0 | 15.9 | NR3O-2M-12 | NR30-2M-24 | |
| 4.0 | 58 l/min | 8 | 38.1 | 51.8 | 14.3 | 47.6 | 41.3 | 38.1 | 9.5 | 19.1 | NR4O-2M-12 | NR40-2M-24 | |
| 3/2 Selector/ Diverter |
1.0 | 6 l/min | 6 | 19.1 | 29.5 | 9.2 | 31.8 | 22.2 | 22.2 | 4.8 | 11.1 | NR1-3M-12 | NR1-3M-24 |
| 1.6 | 16 l/min | 6 | 29.4 | 37.9 | 11.3 | 31.8 | 28.6 | 25.4 | 6.4 | 12.7 | NR2-3M-12 | NR2-3M-24 | |
| 2.4 | 28 l/min | 6 | 31.8 | 46.1 | 12.7 | 41.3 | 34.9 | 31.8 | 8.0 | 15.9 | NR3-3M-12 | NR3-3M-24 | |
| 4.0 | 58 l/min | 6 | 38.1 | 51.8 | 14.3 | 47.6 | 41.3 | 38.1 | 9.5 | 19.1 | NR4-3M-12 | NR4-3M-24 | |
-저 전력 소비, 소형, 경량 디자인
-양방향 컨트롤
-Dead volume 최소화
-All wetted areas PTFE
-부식성 유체에 사용 가능
-High cycle life
-빠른 제어 반응 시간
-leak 방지 디자인
-밸브 몸체, 재질, threads 사양, 압력 사양 커스텀 제작 가능
-CE, RoHS 규격 준수
-양방향 컨트롤
-Dead volume 최소화
-All wetted areas PTFE
-부식성 유체에 사용 가능
-High cycle life
-빠른 제어 반응 시간
-leak 방지 디자인
-밸브 몸체, 재질, threads 사양, 압력 사양 커스텀 제작 가능
-CE, RoHS 규격 준수
| SPECIFICATIONS | |
| Valve type | 2/2 normally-closed, 2/2 normally-open 3/2 selector/diverter |
| Medium | Air, water, gas, compatible fluids |
| Max. Coli temp. rating | 70℃ |
| Operating pressure | Vacuum to 2 bar(additional options available*) |
| Flow | 6 to 58 l/min.air @ 2 bar |
| Power consumption | 1.0 to 7.2 watts |
| Response time | 5 to 20ms typ |
| Electrical connections | 450mm wire leads |
| Voltage | 12 or 24 VDC (additional options available*) |
| Ports | #10-32, 1/4-28, G1/8 or manifold |
| Mounting | M2, M3 or manifold (3mm thru hole) |
| Wetted materials | PTFE (Peek, PCTFE & PPS available*) |
| CE, RoHS compliant | |
