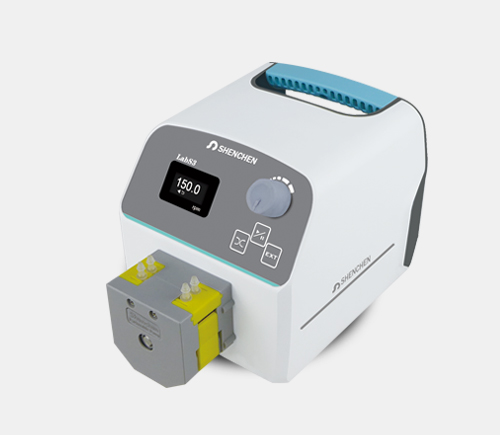

LabS3/MiniPump
튜빙펌프 (LabS3) Precision Pump > Peristaltic Pump > ~550ml/min- 제품설명
-
- Compact Peristaltic Pump
- Flow Rate: 0.0024-190 ml/min
- 저전력 소비, 저소음 작동
- Continuous dosing application에 적합
- 쉬운 튜브 교체
- 디지털 노브로 회전 속도 조절
- 전원 차단시 유저 세팅 저장
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*product composition and flow rate
| Model | Pump head | Speed(rpm) | Tubing size | Flow rate range(ml/min) |
| LabS3 | UD15 | 0.1-350 | 16#, 17#,25# | 0.08-930 |
| Minipump | 0.1-300 | 1*1, 2*1, 2.5*1, 3*1 13#, 14#, 16#, 25# |
0.0024-190 |
| Flow rate range | 0.0024-190ml/min |
| Speed range | LabS3/UD15: 0.1-350rpm, reversible: LabS3/Minipump: 0.1-300rpm, reversible |
| Speed resolution | 0.1rpm |
| Speed control | Digital knob |
| Control method | Mechanical keypad |
| Display | OLED display(0.96") |
| Weight | 800g |
| Keypad lifetime | 300,000 times |
| Power supply | DC 24V/1A with power adapter |
| External control | Start/stop control(switch signal), speed control 0-5V, 0-10V 4-20mA for option |
| Communication interface | RS485 support MODBUS protocol |
| Condition temperature | 0-40°C |
| Relative humidity | <80% |
| Dimension(l*w*h) | 180*115*125mm(L*W*H) |
| IP rate | IP31 |
