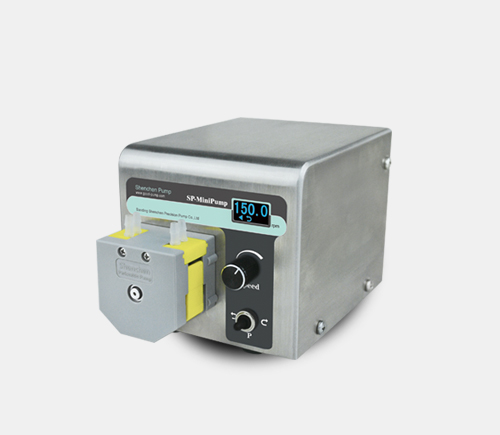

SP-MiniPump

튜빙펌프 (SP-Minipump) Precision Pump > Peristaltic Pump > ~550ml/min
제품설명
  • Compact Peristaltic Pump
  • Flow Rate: 0.0024-190ml/min
  • Standard terminal 을 통한 외부 컨트롤
  • Multiple external interface
  • RS485(MODBUS protocol, RTU mode) 지원
  • Maker : INNOFLUID / China
연락처
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167

CATALOGUE #1 DOWNLOAD

*Product composition and flow rate range
Rotation
 speed(rpm)		 Flow rate ml/min(use 1mm wall thickness tube, more use in dual channels)
Tubing ID 1mm Tubing ID 2mm Tubing ID 2.5mm Tubing ID 3mm
5 0.25 0.9 1.28 1.78
10 0.49 1.84 2.59 3.52
15 0.74 2.76 3.85 5.3
25 1.25 4.57 6.43 8.8
40 2 7.31 10.25 14.02
50 2.52 9.14 12.78 17.47
75 3.76 13.64 19.04 26.12
100 5.03 18.17 25.42 35.34
200 10.12 36.45 51.27 71.44
250 12.63 45.75 64.34 88.35
300 15.01 54.63 76.84 108.39

Rotation
 speed(rpm)		 Flow rate ml/min(use 1.6mm wall thickness tube, more use in single channels)
13# Tubing ID 0.8mm 14# Tubing ID 1.6mm 16# Tubing ID 3.1mm 25# Tubing ID 4.8mm
5 0.12 0.56 1.97 3.26
10 0.26 1.15 3.9 6.41
15 0.39 1.74 5.8 9.52
25 0.66 2.88 9.59 15.74
40 1.08 4.59 15.29 25.15
50 1.34 5.69 18.96 31.14
75 2 8.54 28.36 46.55
100 2.73 11.37 37.66 61.98
200 5.46 22.76 76.02 124.14
250 6.81 28.4 95.08 153.63
300 8.28 33.88 114.31 190

Flow rate range 0.0024-190ml/min
Speed range 0.1-300rpm, reversible.
Speed resolution 0.1rpm
Speed control Digital knob control speed
Motor type Stepper motor
Display OLED display
Power consumption <15W
Weight 1.64kg
Keypad lifetime  300,000 times
Power supply  24V/1A DC power
External control Start/stop control(switch signal), speed control 0-5V, 0-10V 4-20mA for option(Analog signal)
Communication interface RS485 support MODBUS protocol(RTU mode)
Condition temperature 0-40°C
Relative humidity <80%
Drive dimension(l*w*h) 136*113*108mm(L*W*H)
IP rate IP31
