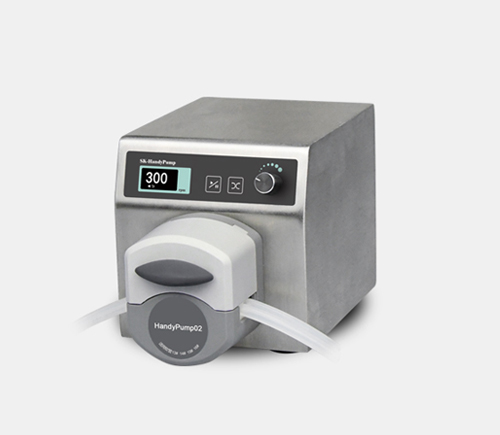

SK-HandyPump
튜빙펌프 (SK-HandyPump) Precision Pump > Peristaltic Pump > ~550ml/min- 제품설명
-
- Compact Peristaltic Pump
- Flow Rate: 0.0033-365.69ml/min
- SUS304 케이스-anti corrosion, conform to GMP request
- 디지털 노브로 회전 속도 조절
- OLED 디스플레이에서 작동 상태와 모터 스피드 표시
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Product composition and flow rate
| Drive&Speed | Pump head | Tubing size | Flow rate(ml/min) | Flow rate(ml/min) |
| SK-Handypump | Handypump01 | 0.1-300 | 13#,14#,19#,16#,25# | 0.0033-365.69 |
| Handypump02 | 13#, 14#, 19#, 16# | 0.0033-190.76 |
| Flow rate range | 0.0033-365.69ml/min |
| Speed range | 0.1-300rpm |
| Speed resolution | 0.1rpm |
| Control method | Digital knob control/Mechanical keypad |
| Motor type | Stepper motor |
| Display | OLED display(0.96") |
| Power consumption | 15W |
| Weight | 1.75kg |
| Keypad lifetime | 300,000 times |
| Power supply | DC 24V/1A with power adapter |
| External control | Start/stop control(switch signal) speed: 0-5V, 4-20mA(standard), 0-10V(optional) |
| Communication interface | RS485, RS232 |
| Condition temperature | 0-40°C |
| Relative humidity | <80% |
| Output interface | Output motor working status(open-collector output) |
| Drive dimension(l*w*h) | 198*113*118mm(L*W*H) |
| IP rate | IP31 |
