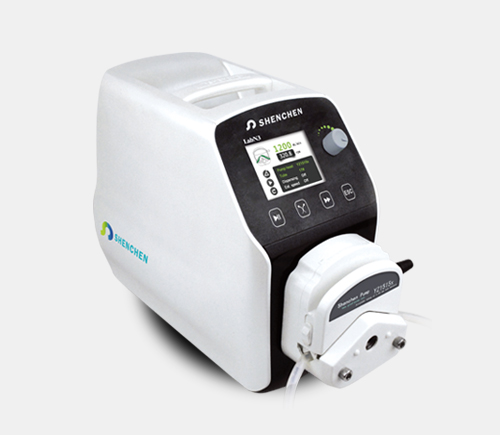

LabN3
튜빙펌프 (LabN3) Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Flow rates Peristaltic Pump (Intelligent Type)
- Flow Rate: 0.000166-1330ml/min
- ABS engineering 하우징, 유선형 디자인
- 3.2" LCD screen
- 스피드 조절용 디지털 노브, 키패드 조작
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Pump head&Flow rate
| Drive&Speed | Pump head | Tubing size | Flow rate(ml/min) |
| LabN3 0.1-350rpm |
YZ1515x | 13#,14#,19#,16#,25#,17#,18# | 0.007-1330 |
| YZ2515x | 15#, 24# | 0.17-1015 | |
| MC1~MC12(10) | ID: 0.13-3.17mm Wall thickness: 0.8-1mm |
0.000166-49 | |
| MC1~MC12(6) | 0.000185-65 |
| Flow rate range | 0.000166-1330ml/min |
| Speed resolution | 0.1rpm/min |
| Back suction angle | 0-360 |
| Testing time range | 0.1s-9999hr |
| Outlet pressure | 0.8-1.0mm wall thickness: 0.1Mpa; 1.6-2.4mm wall thickness:0.1-0.27Mpa |
| Display | Mechanical keypad+Rotary encoded switch |
| Control system | Mechanical keypad |
| Keypad lifetime | 300,000 times |
| External control speed signal | 0-5V, 0-10V, 4-20mA for option |
| Start/stop direction signal | Passive switch signal, such as foot pedal switch. Active switch signal: 5V,12V and 24V for option |
| Communication interface | RS232, RS485 support Modbus protocol(RTU mode) |
| Output interface | Output motor working status(open collector output) |
| Power supply | AC220V±10% 50Hz/60Hz (standard) AC110V±10% 50Hz/60Hz (optional) |
| Drive dimention | 261.4*157.3*236.9(l*w*h) |
| Drive weight | 4.40kg |
| Power consumption | <50W |
| Environment temperature | 0-40°C |
| Relative humidity | <80% |
| IP rate | IP31 |
