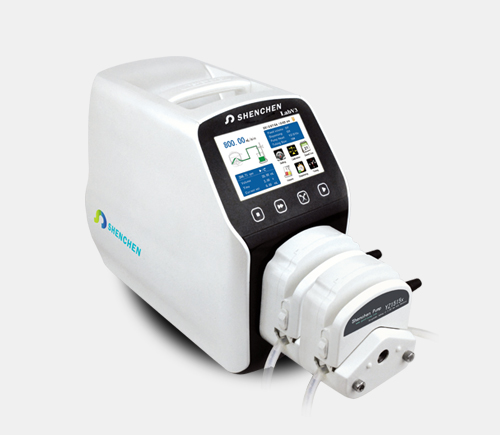

LabV3
튜빙펌프 (LabV3) Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Flow rates Peristaltic Pump (Intelligent Type)
- Flow Rate: 0.000166-1330ml/min
- ABS engineering 하우징, 유선형 디자인
- 4.3" 컬러 터치스크린 디스플레이
- 3가지 모드: fixed volume, fixed time and volume, timestart and stop
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Pump head&flow rate
| Drive&Speed | Pump head | Tubing size | Flow rate(ml/min) |
| LabV3 0.1-350rpm |
YZ1515x | 13#,14#,19#,16#,25#,17#,18# | 0.007-1330 |
| YZ2515x | 15#, 24# | 0.17-1015 | |
| MC1~MC12(10) | ID: 0.13-3.17mm Wall thickness: 0.8-1mm |
0.000166-49 | |
| MC1~MC12(6) | 0.000185-65 |
| Flow rate range | 0.000166-1330mL/min |
| Speed range | 0.1-350rpm |
| Flow rate accuracy | <±0.5% |
| Flow rate resolution | 0.01ul |
| Speed resolution | 0.01rpm |
| Outlet pressure | 0.1Mpa(0.8-1.0mm wall thickness tubing), 0.1-0.27Mpa(1.6-2.4mm wall thickness tubing) |
| Control method | Touch screen and mechanical keypad |
| Keypad lifetime | 300,000 times |
| Display | 4.3inch-industrial grade-True color LCD display |
| Start/Stop, change direction signal | Passive switch signal, such as foot pedal switch; Active switch signal : 5V, 12V, 24V for option |
| External control signal | 0-5V, 0-10V, 4-20mA for option |
| Output interface | Output motor working status(open-collector output) |
| Communication interface | RS232, RS485 support MODBUS protocol(RTU mode) |
| Power supply | 220V ± 10%, 50Hz/60Hz (standard) 110V ±10%, 50Hz/60Hz (optional) |
| Motor type | Stepper motor |
| Drive dimension | 261.4*157.3*236.9mm(LxWxH) |
| Drive weight | 4.40kg |
| Power consumption | <50W |
| Condition temperature | 0-40°C |
| Relative humidity | <80% |
| Back suction angle | 0-360 |
| IP rate | IP31 |
