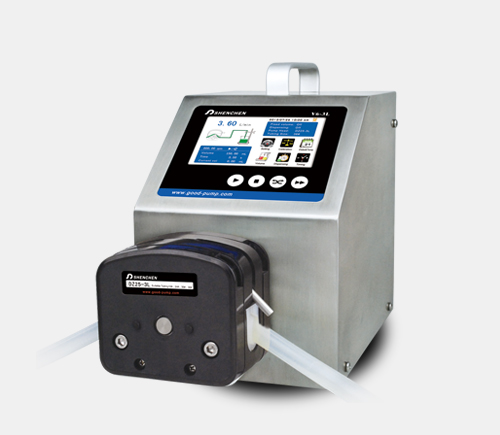

V6-6L
튜빙펌프 Precision Pump > Peristaltic Pump > ~13L/min- 제품설명
-
- Flow rates Peristaltic Pump (Intelligent Type)
- Flow Rate: 0.3-6000ml/min
- Servo motor drive
- Intelligent calibration and online micro adjust fuction
- 4.3" 컬러 터치스크린 디스플레이
- 3가지 모드: fixed volume, fixed time and volume, timerstart and stop
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Product compostition and flow rate range
| Drive | Motor type | Pump head | Tubing size | Speend range(rpm) | Flow rate(ml/min) |
| V6-6L | Servo motor | DZ25-6L | 15#, 24#, 35#, 36# | 0.1-600 | 0.3-6000 |
| Flow rate range | 0.3-6000mL/min |
| Speed range | 0.1-600rpm |
| Flow rate accuracy | <±0.5% |
| Flow rate resolution | 0.01ml |
| Back suction angle | 0-360 |
| Speed resolution | 0.01rpm |
| Outlet pressure | 0.3Mpa |
| Control method | Touch screen and mechanical keypad |
| Keypad lifetime | 300,000 times |
| Display | Industrial grade 4.3" color LCD display |
| Start/Stop, direction signal | Passive switch signal, such as foot pedal switch; Active switch signal : 5V, 12V, 24V for option |
| External speed control signal | 0-5V, 0-10V, 4-20mA for option |
| Output interface | Output motor working status(open-collector output) |
| Communication interface | RS232, RS485 support MODBUS protocol(RTU mode) |
| Power supply | AC 220V ± 10%, 50Hz/60Hz (standard) 110V ±10%, 50Hz/60Hz (optional) |
| Motor type | Servo motor |
| Drive dimension | 283*192*218mm(LxWxH) |
| Drive weight | 7.85kg |
| Power consumption | <80W |
| Environment temperature | 0-40℃ |
| Relative humidity | <80% |
| IP rate | IP31 |
