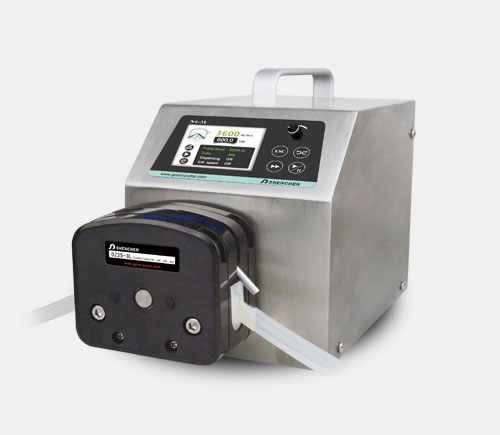

N6-3L
튜빙펌프 Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Flow rates Peristaltic Pump (Intelligent Type)
- Flow Rate: 0.211-3600ml/min
- Servo motor drive
- 저진동, 저소음(드라이브 음소거 설정), 정확한 제어
- 기계식 버튼 제어
- 3.2" true color LCD 디스플레이
- RS232, RS485 인터페이스 지원
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Product composition and flow rate range
| Drive | Motor type | Pump head | Tubing size | Speend range(rpm) | Flow rate(ml/min) |
| N6-3L | Servo motor | DZ25-3L | 15#, 24#, 35#, 36# | 0.1-600 | 0.211-3600 |
| Flow rate Range | 0.211-3600ml/min |
| Speed range | 0.1-600rpm |
| Flow rate accuracy | <±0.5% |
| Speed resolution | 0.1rpm |
| Outlet pressure | 0.3Mpa |
| Fixed time dispensing function | 0.1s-9999h |
| Control method | Mechanical keypad+Rotary encoded switch |
| Display | 3.2" high definition LCD screen |
| Start/stop, direction signal | Passive switch signal, such as foot pedal switch. Active switch signal: 5V,12V and 24V for option |
| External speed control signal | 0-5V, 0-10V, 4-20mA for option |
| Output interface | Output motor working status(open-collector output) |
| Power supply | AC 220V±10% 50H/z/60Hz (standard), AC110V±10% 50Hz/60Hz (optional) |
| Power consumption | <80w |
| Communication interface | RS232, RS485 support MODBUS protocol(RTU mode) |
| Motor type | Servo motor |
| Copy numbers | 1-9999 times, setting "0"means unlimited |
| Drive dimension(l*w*h) | 223*152*230mm |
| Drive weight | 5.06kg |
| Relative humidity | <80% |
| Environment temperature | 0-40°C |
| Back suction angle | 0-360 |
| IP rate | IP31 |
