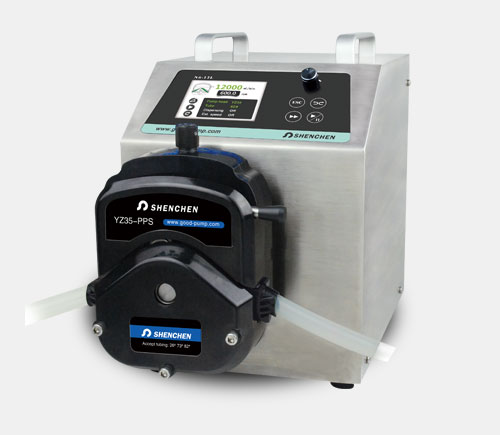

N6-12L
튜빙펌프 Precision Pump > Peristaltic Pump > ~13L/min- 제품설명
-
- Flow rates Peristaltic Pump (Intelligent Type)
- Flow Rate: 0.69-12000ml/min
- Servo motor drive
- 저진동, 저소음(드라이브 음소거 설정), 정확한 제어
- 기계식 버튼 제어
- 3.2" true color LCD 디스플레이
- RS232, RS485 인터페이스 지원
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Product composition and flow rate range
| Drive | Motor type | Pump head | Tubing size | Speend range(rpm) | Flow rate(ml/min) |
| N6-12L | Servo motor | YZ35 | 26#, 73#, 82# | 0.1-600 | 0.69-12000 |
| Flow rate range | 0.69-12000ml/min |
| Speed range | 0.1-600rpm |
| Flow rate accuracy | <±0.5% |
| Speed resolution | 0.1rpm |
| Outlet pressure | 0.3Mpa |
| Fixed time dispensing fuction | 0.1s-9999h |
| Control method | Mechanical keypad+Rotary encoded switch |
| Display | 3.2" high definition LCD screen |
| Start/stop, direction signal | Passive switch signal, such as foot pedal switch. Active switch signal: 5V, 12V and 24V for option |
| External speed control signal | 0-5V, 0-10V, 4-20mA for option |
| Output interface | Output motor working status(Open-collector output) |
| Power supply | AC 220V ±10% 50Hz/60Hz(standard), AC 110v ± 10% 50Hz/60Hz (optional) |
| Power consumption | <80w |
| Communication interface | RS232, RS485 support MODBUS protocol(RTU mode) |
| Motor type | Servo motor |
| Copy numbers | 1-9999 times, setting"0"means unlimited |
| Drive dimension(l*w*h) | 302*222*321mm(l*w*h) |
| Drive weight | 13.01kg |
| Relative hyumidity | <80% |
| Environment temperature | 0-40°C |
| Back suction angle | 0-360 |
| IP rate | IP31 |
