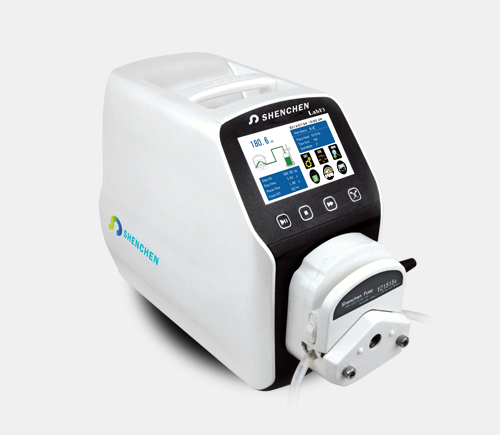

LabF3
튜빙펌프 (Dispensing Peristaltic Pump) Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Dispensing Peristaltic Pump
- Flow Rate: 0.00166-1330ml/min
- Intelligent calibration function
- Dispensing volume, dispensing time, 반복 횟수, back suction angle 설정 가능
- ABS engineering 하우징, 유선형 디자인
- 4.3" 컬러 터치 디스플레이
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Pump head&Flow rate
*Filling volume reference parameter(media is water)
| Drive&Speed | Pump head | Tubing size | Flow rate(ml/min) |
| LabF3 0.1-350rpm |
YZ1515x | 13#,14#,19#,16#,25#,17#,18# | 0.07-1330 |
| YZ2515x | 15#, 24# | 1.7-1015 | |
| MC1~MC12(10) | ID: 0.13-3.17mm Wall thickness: 0.8-1mm |
0.00166-49(suggestion working speed<=150rpm) | |
| MC1~MC12(6) | 0.00185-65(suggestion working speed<=150rpm) |
*Filling volume reference parameter(media is water)
| Drive | Pump head | Tubing | Filling volume(ml) | Filling time(s) | Filling accuracy(±%) | Output(pcs/min) | Motor speed(rpm) |
| LabF3 | YZ1515x YZ2515x |
13# | 0.1 | 0.3 | ±5ul | 46 | 285.71 |
| 13# | 0.3 | 0.8 | 1.5 | 33 | 321.42 | ||
| 13# | 0.5 | 1.3 | 0.8 | 26 | 329.67 | ||
| 13# | 1 | 2.8 | 0.5 | 15 | 306.12 | ||
| 14# | 2 | 1.5 | 1 | 24 | 296.29 | ||
| 14# | 3 | 2 | 0.8 | 20 | 333.33 | ||
| 19# | 5 | 1.8 | 1 | 21 | 303.03 | ||
| 16# | 7 | 1.2 | 0.5 | 27 | 304.87 | ||
| 25#/15# | 10 | 1.2 | 1 | 27 | 294.11 | ||
| 25#/15# | 15 | 1.8 | 0.8 | 21 | 294.11 | ||
| 25#/15# | 20 | 2.2 | 0.5 | 18 | 320.85 | ||
| 17#/24# | 30 | 2 | 0.8 | 20 | 310.34 | ||
| 17#/24# | 50 | 3.5 | 0.5 | 13 | 295.56 | ||
| 18# | 80 | 4 | 0.5 | 12 | 315.78 | ||
| 18# | 100 | 5 | 0.5 | 10 | 315.78 |
| Flow rate | 0.00166~1330mL/min |
| Speed range | 1-350rpm |
| Speed resolution | 0.01rpm |
| Dispensing volume range | 0.01-9999.99mL |
| Dispensing volume resolution | 0.01ml |
| Dispensing time | 0.1~9999.99 s |
| Pause time | 0.1~9999.99s |
| Time resolution | 0.01s |
| Copy numbers | 1-9999 numbers, setting "0" means unlimited |
| Back suction angle | 0~360º |
| Dispensing accuracy | <±0.5% |
| Motor type | stepper motor |
| Display | 4.3inch-industrial grade-true color display |
| Control method | Touch screen and mechanical keypad |
| Keypad lifetime | 300,000 times |
| Start/stop, direction signal | Passive switch signal, such as foot pedal switch; Active switch signal: 5V 12V 24V for option |
| Output interface | Output motor working status(Open-collector output) |
| Communication interface | RS232, RS485 support MODBUS protocol(RTU mode) |
| Power supply | 220V ±10% 50Hz/60Hz (standard) 110V ±10% 50Hz/60Hz (optional) |
| Output interface | 0.8~1.0mm wall thickness tubing: 0.1Mpa; 1.6~2.4mm walll thickness tubing: 0.1~0.27Mpa |
| Drive dimension(l*w*h) | 261.4*157.3*236.9mm(l*w*h) |
| Drive weight | 4.40kg |
| Power consumption | <50w |
| Environment temperature | 0-40°C |
| Relative humidity | <80% |
| IP rate | IP 31 |
