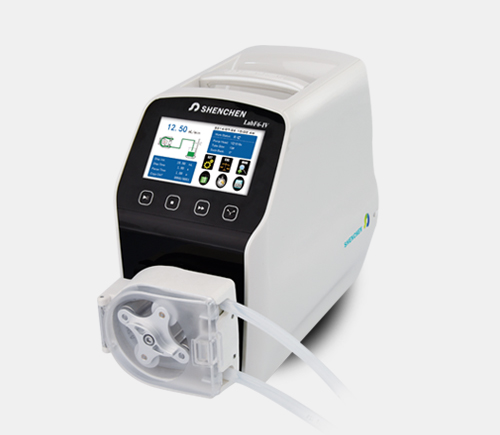

LabF6-IV
튜빙펌프 (Dispensing Peristaltic Pump) Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Dispensing Peristaltic Pump
- Flow Rate: 3.423-6663ml/min
- Servo motor 컨트롤로 강한 토크와 정확성
- UC25 펌프 헤드 사용으로 넓은 범위의 유량 설정
- ABS engineering 하우징, 유선형 디자인
- 4.3" 컬러 터치 디스플레이
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Pump head&Flow rate
Speed Range: 1-600
Outlet pressure: 0.14-0.27Mpa
Motor type: Servo motor
Communication interface: RS232, RS485 support MODBUS protocol (RTU mode)
Power supply: AC 220V±10% 50Hz/60Hz(standard) AC 110V±10% 50Hz/60Hz(optional)
Drive dimension: 261.4×157.3×236.9mm
Drive weight: 4.40kg
Power consumption: <80W
Condition temperature: 0-40°C
Relative humidity: <80%
IP rate: IP31
| Pump head | Housing material | Tubing | Speed range (rpm) |
Flow rate (ml/min) | Weight(kg) | ||
| Base | protecting cover |
size | ID*Wall thickness | ||||
| UC25 | PSF | PC | 15# | 4.8*2.4 | 0.1-600 | 3.423-2054 | 1.52/1.39 |
| 24# | 6.4*2.4 | 5.033-3020 | |||||
| 35# | 7.9*2.4 | 8.588-5153 | |||||
| 36# | 9.6*2.4 | 1.1105-6663 | |||||
| Drive | Model | Display | Operating mode | External contorl signal |
Motor status output interface |
| LabF6-IV | Intelligent flow rate type |
4.3"-Industrial-true color LCD Screen |
Touch screen+ Mechanical keypad |
Start/stop: Passive switch signal, such as foot pedal; Active switch signal: 5V(standard), 12V, 24V,(optional) |
Open-collector output |
Speed Range: 1-600
Outlet pressure: 0.14-0.27Mpa
Motor type: Servo motor
Communication interface: RS232, RS485 support MODBUS protocol (RTU mode)
Power supply: AC 220V±10% 50Hz/60Hz(standard) AC 110V±10% 50Hz/60Hz(optional)
Drive dimension: 261.4×157.3×236.9mm
Drive weight: 4.40kg
Power consumption: <80W
Condition temperature: 0-40°C
Relative humidity: <80%
IP rate: IP31
