F1

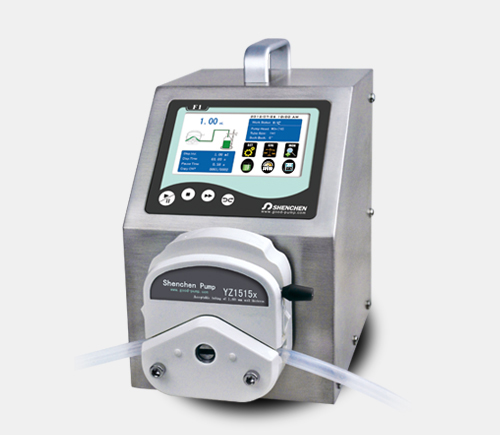

튜빙펌프 (Dispensing Peristaltic Pump) Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Dispensing Peristaltic Pump
- Flow Rate: 0.00166-570ml/min
- Dispensing volume, dispensing time, 반복 횟수, back suction angle 설정 가능
- 60가지 분주 모드 저장 가능
- 4.3" 컬러 터치 디스플레이
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
| Flow rate | 0.00166~570mL/min |
| Speed range | 1-150rpm |
| Dispensing volume range | 0.01~9999.99mL |
| Dispensing volume resolution | 0.01mL |
| Dispensing time | 0.1~9999.99 s |
| Pause time | 0.1~9999.99 s |
| Tiemp resolution | 0.01 s |
| Copy numbers | 1~9999 numbers, setting "0" means unlimited |
| Back suction angle | 0~360º |
| Dispensing accuracy | <±0.5% |
| Motor type | stepper motor |
| Display | 4.3 inch-industrial grade-true color display |
| Control method | Touch screen and membrane keypad |
| Start/Stop, direction | Passive switch signal, such as foot pedal swutcg; Active switch signal : 5V, 12V, 24V for option |
| Output interface | Output motor working status(open-colector output) |
| Communication interface | RS232, RS485 support MODBUS protocol(RTU mode) |
| Power supply | AC 220V ± 10%, 50Hz/60Hz (standard) 110V ±10%, 50Hz/60Hz (optional) |
| Output interface | 0.8~1.0mm wal thickness tubing : 0.1Mpa; 1.6~2.4mm wall thickness tubing : 0.1~0.27Mpa |
| Drive dimension | 219.6x152x211.6mm(LxWxH) |
| Drive weight | 4.20kg |
| Power consumption | <50W |
| Condition temperature | 0-40℃ |
*Product Composition and Flow rate Range
| Drive&Speed | Pump head | Tubing size | Flow rate(mL/min) |
| F1 1~150rpm |
YZ1515x | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 0.07~570 |
| YZ2515x | 15#, 24# | 1.7~435 | |
| MC1-MC12(10) | ID : 0.13~3.17mm Wall thickness : 0.8~1mm |
0.00166~49 (suggestion working speed≤150rpm) | |
| MC1-MC12(6) | 0.00185~65 (suggestion working speed≤150rpm) |
*Filling Volume Reference Parameter(Media is water)
| Drive&Speed | Pump head | Tubing | Filling Volumn(mL) | Filling Time(s) | Filling Accuracy(±%) | Output (pcs/min) |
Motor speed(rpm) |
| F1 | YZ1515x YZ2515x |
13# | 0.1 | 0.7 | 5 | 42 | 122.4 |
| 13# | 0.3 | 2 | 1.5 | 20 | 128.57 | ||
| 13# | 0.5 | 3.5 | 0.8 | 13 | 122.44 | ||
| 13# | 1 | 7 | 0.5 | 7 | 122.44 | ||
| 14# | 2 | 3.5 | 1 | 13 | 126.98 | ||
| 14# | 3 | 5 | 0.8 | 10 | 133.33 | ||
| 19# | 5 | 4.5 | 1 | 10 | 121.21 | ||
| 16# | 7 | 4 | 0.5 | 12 | 128.04 | ||
| 25#/15# | 10 | 3 | 1 | 15 | 117.64 | ||
| 25#/15# | 15 | 4 | 0.8 | 12 | 132.35 | ||
| 25#/15# | 20 | 5.5 | 0.5 | 9 | 128.34 | ||
| 17#/24# | 30 | 5 | 0.8 | 10 | 124.13 | ||
| 17#/24# | 50 | 8 | 0.5 | 6 | 129.31 | ||
| 18# | 80 | 10 | 0.5 | 5 | 126.31 | ||
| 18# | 100 | 12 | 0.5 | 4 | 131.57 |
