F6

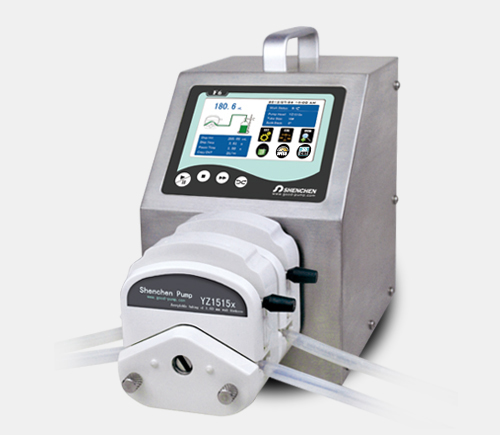

튜빙펌프 (Dispensing Peristaltic Pump) Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Dispensing Peristaltic Pump
- Flow Rate: 0.00166-2280ml/min
- Dispensing volume, dispensing time, 반복 횟수, back suction angle 설정 가능
- 60가지 분주 모드 저장 가능
- 4.3" 컬러 터치 디스플레이
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
| Flow rate | 0.00166~2280mL/min |
| Speed Range | 1-600rpm |
| Speed resolution | 0.01rpn |
| Dispensing volume range | 0.1-9999.99ml |
| Dispensing volume resolution | 0.01ml |
| Dispensing time | 0.5-9999.99s |
| Pause time | 0.5-9999.99s |
| Time resolution | 0.01s |
| Copy numbers | 1-999 times. Setting"0"means unlimited |
| Back suction angle | 0-360º |
| Dispensing accuracy | <±0.5% |
| Motor type | Stepper motoer |
| Display | 4.3" industrial grade true color display |
| Control method | Touch screen and mechanical keypad |
| keypad lifetime | 300,000 times |
| Star/stop, direction signal | Passive switch signal, such as foot peda, Active switch singal 5V, 12V, 24V for option |
| Output interface | Output motor working status(open-collector output) |
| Communication interface | RS323, RS485 support MODBUS protocol(RTU mode) |
| Power supply | AC 220V±10%50Hz/60Hz (standard), AC 110V ± 10% 60Hz/60Hz(optional) |
| Output interface | 0.8~1.0mm wall thickness tubing : 0.1Mpa; 1.6~2.4mm wall thickness tubign : 0.1~0.27Mpa |
| Drive dimension(LxWxH) | 219.6x152x211.6 mm |
| Drive weight | 4.2kg |
| Power consumption | <50W |
| Environment temperature | 0-40℃ |
| Relative humidity | < 80% |
| IP rate | IP31 |
*Product composition and FLow rate Range
| Drive & Speed | Pump head | Tubing size | Flow rate (mL/min) |
| F6 1~600rpm |
YZ1515x | 12#, 14#, 19#, 16#, 25#, 17#, 18# | 0.07~2280 |
| YZ2515x | 15#, 24# | 1.7~1740 | |
| MX1-MC12(10) | ID : 0.13~3.17mm wall thickness : 0.8~1mm |
0.0016~49(suggestion working speed≤150rpm) | |
| MX1-MC12(6) | 0.00185~65(suggestion working speed≤150rpm) |
*Filling Volume Reference Parameter(Media is water)
| Dive | Pump head | Tubing | Filling volume (mL) |
Filling Time (s) |
Filling Accuracy(±%) | Output (pcs/min) |
Motor speed(rpm) |
| F6 | YZ1515x YZ2515x |
13# | 0.1 | 0.5 | ±5ul | 40 | 204.083 |
| 13# | 0.3 | 0.7 | 35 | 35 | 246.251 | ||
| 13# | 0.5 | 1 | 0.8 | 30 | 516.081 | ||
| 13# | 1 | 2 | 0.5 | 20 | 517.152 | ||
| 14# | 2 | 1 | 1 | 30 | 446.724 | ||
| 14# | 3 | 1.5 | 0.8 | 24 | 446.479 | ||
| 19# | 5 | 1.5 | 1 | 27 | 454.919 | ||
| 16# | 7 | 1 | 0.5 | 30 | 457.705 | ||
| 25#/15# | 10 | 1 | 1 | 30 | 303.426 | ||
| 25#/15# | 15 | 1 | 0.8 | 30 | 461.273 | ||
| 25#/15# | 20 | 1.2 | 0.5 | 27 | 518.945 | ||
| 17#/24# | 30 | 1.2 | 0.8 | 27 | 462.725 | ||
| 17#/24# | 50 | 2 | 0.5 | 20 | 461.595 | ||
| 18# | 80 | 2.5 | 0.5 | 17 | 427.274 | ||
| 18# | 100 | 3 | 0.5 | 15 | 446.583 |
