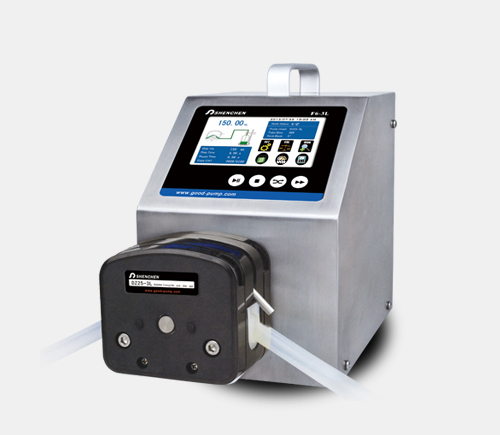

F6-3L
튜빙펌프 (Dispensing Peristaltic Pump) Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Dispensing Peristaltic Pump
- Flow Rate: 2.11-3600ml/min
- Intelligent calibration function
- Dispensing volume, dispensing time, 반복 횟수, back suction angle 설정 가능
- Servo motor 구동 drive
- 4.3" 컬러 터치 디스플레이
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Product composition and flow rate range
*Filling volume reference parameter(media is water)
| Drive | Motor type | Pump head | Tubing size | Speed range(rpm) | Flow rate(ml/min) |
| F6-3L | Servo motor | DZ25-3L | 15#, 24#, 35#, 36# | 1-600 | 2.11-3600 |
*Filling volume reference parameter(media is water)
| Drive | Pump head |
Tubing | Filling volume (ml) |
Filling time(s) | Filling Accuracy(±%) |
Output(pcs/min) | Motor speed(rpm) |
| F6-3L | DZ25-3L | 15# | 16 | 1 | 0.5 | 30 | 443.54 |
| 24# | 30 | 1.2 | 1 | 27 | 454.877 | ||
| 35# | 150 | 4 | 0.6 | 12 | 447.94 | ||
| 36# | 200 | 4 | 0.6 | 12 | 481.802 |
| Flow rate range | 2.11-3600mL/min |
| Speed range | 1-600 грm |
| Speed resolution | 0.01rpm |
| Dispensing volume range | 0.01-9999.99 mL |
| Dispensing volume resolution | 0.01 mL |
| Dispensing time | 0.1-9999.99 s |
| Pause time | 0.1-9999.99 s |
| Time resolution | 0.01 s |
| Copy numbers | 1-9999 times, setting '0' means unlimited |
| Back suction angle | 0-360 |
| Outlet pressure | 0.3 Mpa |
| Dispensing accuracy | <±0.5% |
| Motor type | Servo motor |
| Display | Industrial grade 4.3" color LCD display |
| Control method | Touch screen and Mechanical keypad |
| Keypad lifetime | 300.000 times |
| Start/stop, direction signal | Passive switch signal, such as foot pedal switch Active switch signal: 5V, 12V and 24V for option |
| Output interface | Output motor working status (Open-Collector output) |
| Power supply | AC 220V±10% 50Hz/60Hz (Standard) AC 110V±10% 50Hz/60Hz (Optional) |
| Drive dimension(l*w*h) | 223*152*200mm |
| Drive weight | 5.02kg |
| Power consumption | <80W |
| Condition temperature | 0-40°C |
| Relative humidity | <80% |
| IP rate | IP31 |
