IF3

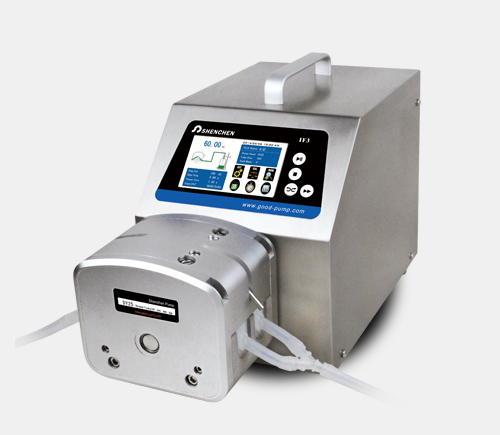

튜빙펌프 (Low Pulsation Dispensing Peristaltic Pump) Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Dispensing Peristaltic Pump
- Flow Rate: 0.1-4340ml/min
- Low Pulsation pump head: 2 세트 롤러의 위상차를 이용하여 맥동을 제거
- Dispensing volume, dispensing time, 반복 횟수, back suction angle 설정 가능
- Servo motor 구동 drive
- 4.3" 컬러 터치 디스플레이
- Foot pedal 스위치 연결 가능
- Maker : INNOFLUID / China
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Product composition and flow rate range
*Filling volume reference parameter(Media is water)
| Drive | Motor type | Pump head | Tubing size | Speed range(rpm) | Flow rate(ml/min) |
| IF3 | Servo | DY15 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 1~350 | 0.1~3337 |
| DY25 | 15#, 24#, 35#, 36# | 4.5~4340 |
*Filling volume reference parameter(Media is water)
| Drive | Pump head | Tubing | Filling volume (ml) |
Filling time(s) | Filling accuracy(±%) | Output (pcs/min) |
Motor speed (rpm) |
| IFS | DY15 | 14# | 0.5 | 0.5 | 0.3 | 60 | 94.1915 |
| 14# | 1 | 1 | 0.4 | 30 | 94.1915 | ||
| 14# | 2 | 1 | 0.6 | 30 | 188.383 | ||
| 19# | 3 | 1 | 0.3 | 30 | 140.625 | ||
| 16# | 5 | 1 | 0.5 | 30 | 145.278 | ||
| 25# | 10 | 1 | 0.3 | 30 | 129.143 | ||
| 25# | 15 | 1 | 0.4 | 30 | 193.715 | ||
| 17# | 30 | 1 | 0.4 | 30 | 282.53 | ||
| 18# | 100 | 2.5 | 0.3 | 17 | 251.73 | ||
| DY25 | 15# | 10 | 1 | 0.3 | 30 | 141.911 | |
| 26# | 30 | 1 | 0.5 | 27 | 235.972 | ||
| 35# | 70 | 1.2 | 0.4 | 27 | 340.466 | ||
| 36# | 100 | 2 | 0.2 | 20 | 241.935 |
