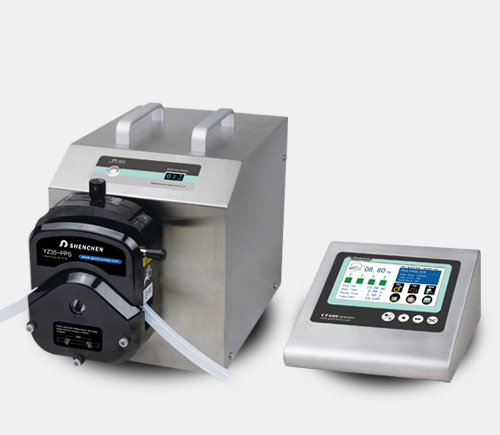

CF600IV
튜빙펌프 (Split Type Filling System) Precision Pump > Peristaltic Pump > Filling System- 제품설명
-
- Filling system (Intelligent type)
- Flow Rate: 6.9-12000ml/min
- Filling accuracy: up to 0.5-1%
- Intelligent calibration and online adjusting function.
- 1 컨트롤러에 최대 16개의 filling unit 구성
- 4.3" 컬러 터치 디스플레이
- Maker : INNOFLUID / China
- 연락처
- 경기본사 : 031-790-1907 (내선2)
* Parameter
| Speen rage | 1-600rpm |
| Dispensing volume range | 0.1~999.999 ml |
| Dispensing time | 0.5-999.999 s |
| Pause time | 0.5-999.99 s |
| Dispensing volume resolution | 0.01 ml |
| Time resolution | 0.01s |
| Copy numbers | 1-999 times, setting "0" means umlimited |
| Back suction angle | 0~360º |
| Dispensing accuracy | <±0.5% |
| Motor type | Stepper motor |
| Circuit system | shenchen-DF-CIR |
| Control system | shenchen-DF-EMB |
| Display | 4.3" industrial grade true color LCD screen |
| Control method | Touch screen and membrane keypad |
| Start/Stop, direction | Passive switch signal, such as foot peda, Active switch signal : 5V, 12V, 24V for option |
| Output interface | Output motor working status(open-colector output) |
| Outlet pressure | 0.1Mpa(0.8-1.0mm wall thickness tubing). 0.1-0.27Mpa(1.6-2.4mm wall thickness tubing) |
| Power supply | AC 220V ± 10%, 50Hz/60Hz (standard) AC 110V ±10%, 50Hz/60Hz (optional) |
| Drive dimension | 310x228x248mm(LxWxH) |
| Drive weight | 11.9kg |
| Power consumption | Each filling unit<300W |
| Condition temperature | 0-40℃ |
| Relative humidity | <80% |
| IP rate | IP 31 |
*Product composition and Flow Rate Range
| Drive | Pump Head | Housing material |
Tube clamp/ Connector material |
Tubing | Motor speed 01~600rpm Flow rate range mL/min |
|
| Tubing size | ID x Wall thickness(mm) |
|||||
| CF600IV | YZ35-PPS | PPS | PP | 26# | 6.4x3.3 | 6.9~4200 |
| 73# | 9.6x3.3 | 12.3~7400 | ||||
| 82# | 12.7x3.3 | 20~12000 | ||||
*Filling volume Reference (Media is water)
| Drive | Pump Head | Tubing | Filling Volume(mL) | Filling Time(s) | Accuracy (±%) | Output(pcs/min) | Motor speed(rpm) |
| CF600IV | YZ35-PPS | 26# | 150 | 3 | 0.5 | 15 | 428.57 |
| 73# | 300 | 486.499 | |||||
| 82# | 500 | 500 |
