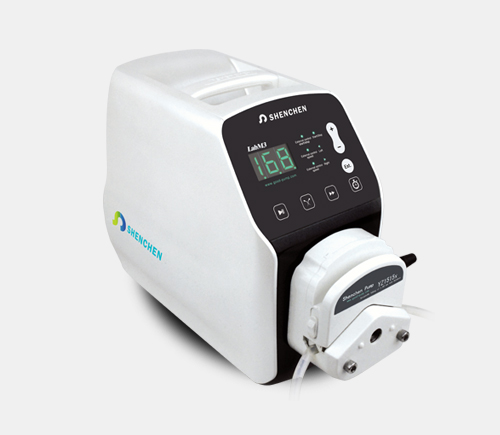

LabM3
튜빙펌프 (Basic Peristaltic Pump) Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Basic Peristaltic Pump
- Flow Rate: 0.000829-1330ml/min
- 기계식 키패드 컨트롤
- ABS engineering plastic housing, 유선형 디자인
- RS232, RS485 (standard MOUBUS protocol) communication 인터페이스
- PC, PLC, HMI 등에 쉬운 연결
- Maker : INNOFLUID / China
- 연락처
- 경기본사 : 031-790-1907 (내선2)
*Pump head & Flow rate
Flow rate range : 0.000829-1330ml/min
Speed range : 0.5-350 rpm
Speed resolution : 0.1 rpm
Testing time range : 0.5s-999s
Outlet pressure : 0.1Mpa (0.8-1.0mm wall thickness tubing) 0.1-0.27Mpa (1.6-2.4mm wall thickness tubing)
Back suction angle : 0-360 angle
Display : 3 digital LED
Control method : Mechanical keypad
Keypad lifetime : 300,000 times
External control speed signal : 0-5V, 0-10V, 4-20mA for option
Start/stop, direction signal : Passive switch signal, such as foot pedal switch Active switch signal, default 24V
Communication interface : RS232/RS485 support MODBUS protocol (RTU mode)
Power supply : AC 220V±10%, 50Hz/60Hz (standard), AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension : 261.4×157.3×236.9(LxWxH)
Drive weight : 4.40kg
Power consumption : <50W
Environment temperature : 0-40°C
Relative humidity : <80%
IP rate : IP31
| Drive & Speed | Pump head | Tubing size | Flow rate(ml/min) |
| LabM3 0.1-350rpm |
YZ1515x | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 0.035-1330 |
| YZ2515x | 15#,24# | 0.85-1015 | |
| MC1~MC12(10) | ID : 0.13-3.17mm Wall thickness : 0.8-1mm |
0.000829-49(suggestion working speed<=150rpm) | |
| MC1~MC12(6) | 0.000925-65(suggestion working speed<=150rpm) |
Flow rate range : 0.000829-1330ml/min
Speed range : 0.5-350 rpm
Speed resolution : 0.1 rpm
Testing time range : 0.5s-999s
Outlet pressure : 0.1Mpa (0.8-1.0mm wall thickness tubing) 0.1-0.27Mpa (1.6-2.4mm wall thickness tubing)
Back suction angle : 0-360 angle
Display : 3 digital LED
Control method : Mechanical keypad
Keypad lifetime : 300,000 times
External control speed signal : 0-5V, 0-10V, 4-20mA for option
Start/stop, direction signal : Passive switch signal, such as foot pedal switch Active switch signal, default 24V
Communication interface : RS232/RS485 support MODBUS protocol (RTU mode)
Power supply : AC 220V±10%, 50Hz/60Hz (standard), AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension : 261.4×157.3×236.9(LxWxH)
Drive weight : 4.40kg
Power consumption : <50W
Environment temperature : 0-40°C
Relative humidity : <80%
IP rate : IP31
