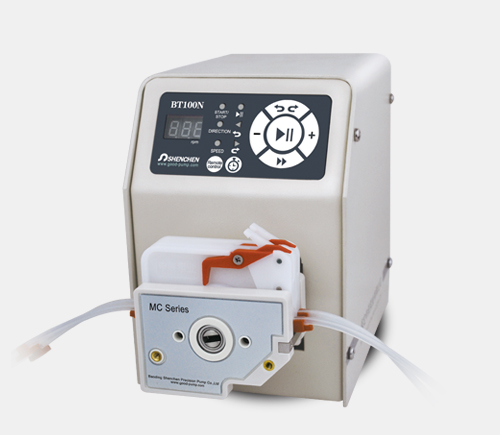

BT100N

튜빙펌프 (Basic Peristaltic Pump) Precision Pump > Peristaltic Pump > ~5L/min
제품설명
  • Basic Peristaltic Pump
  • Flow Rate: 0.000829-570ml/min
  • 마스크 키패드 컨트롤
  • Stepper motor 구동: 0.5-150rpm/min
  • 하우징 재질 선택 가능: PSF(polysulphone material), PPS(polyphenylene sulfide material)
  • RS232, RS485 (MOUBUS protocol RTU mode) communication 인터페이스
  • PC, PLC, HMI 등에 쉬운 연결
  • Maker : INNOFLUID / China
연락처
경기본사 : 031-790-1907 (내선2)







Drive Pump head Tubing size Speed Flow rate(ml/min)
BT100N YZ1515x 13#, 14#, 19#, 16#, 25#, 17#, 18# 0.5-150rpm 0.035-570
YZ2515x 15#,24# 0.85-435
MC1~MC12(10) Diameter : 0.13-3.17mm
Wall thickness : 0.8-1mm
0.000829-49(suggestion working speed<=150rpm)
MC1~MC12(6) 0.000925-65(suggestion working speed<=150rpm)

Tubing 13#(thickness 0.8mm) 14#(thickness 1.6mm) 19#(thickness 2.4mm) 16#(Thickness 3.1mm)
1-150rpm/min 0.07-10.5 0.27-40.5 0.55-82.5 0.82-123

Tubing 25#(Thickness 4.8mm) 17#(Thickness 6.4mm) 18# (Thickness 7.9mm)
1-150rpm/min 1.7-255 2.8-420 3.8-570

Flow rate range : 0.000829-570mL/min
Speed range : 0.5-150 rpm/min
Speed resolution : 0-100rpm, 0.1rpm; 100-600rpm, 1rpm
Testing time range : 0.5sec-999sec
Outlet pressure : 0.8-1.0 mm wall thickness tubing: 0.1Mpa; 1.6-2.4mm wall thickness tubing:0.1-0.27Mpa
Display : LED Display
Control method : Mechanical keypad
Keypad lifetime : 300,000 times
External speed control signal : 0-5V, 0-10V, 4-20mA for option
Start/stop, reversing signal : Passive switch signal, such as foot pedal, Active switch signal: 5V, 12V,24V for option
Communication interface : RS232, RS485 support Modbus protocol(RTU mode)
Power supply : AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional)
Drive dimension(LxWxH) : 188×131×194mm
Drive weight : 4.20kg
Power consumption : <50W
Condition temperature : 0-40°C
Relative humidity : <80%
IP rate : IP31
