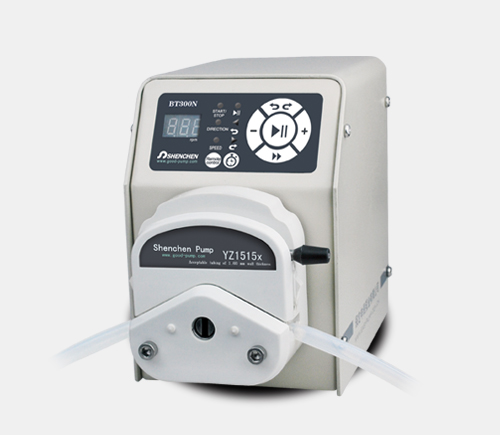

BT300N

튜빙펌프 (Basic Peristaltic Pump) Precision Pump > Peristaltic Pump > ~5L/min
제품설명
  • Basic Peristaltic Pump
  • Flow Rate: 0.000829-1330ml/min
  • 마스크 키패드 컨트롤
  • Stepper motor 구동: 0.5-350rpm/min
  • 하우징 재질 선택 가능: PSF(polysulphone material), PPS(polyphenylene sulfide material)
  • RS232, RS485 (MOUBUS protocol RTU mode) communication 인터페이스
  • PC, PLC, HMI 등에 쉬운 연결
  • Maker : INNOFLUID / China
연락처
경기본사 : 031-790-1907 (내선2)







Drive Pump head Tubing size Speed Flow rate(ml/min)
BT300N YZ1515x 13#,14#,19#,16#,25#,17#,18# 0.5-350rpm 0.035-1330
YZ2515x 15#,24# 0.85-1015
MC1~MC12(10) Diameter: 0.13-3.17mm
Wall thickness: 0.8-1mm
0.000829-49(suggestion working speed<=150rpm)
MC1~MC12(6) 0.000925-65(suggestion working speed<=150rpm)

Tubing 13#(thickness 0.8mm) 14#(thickness 1.6mm) 19#(thickness 2.4mm) 16#(Thickness 3.1mm)
1-350rpm/min 0.07-24.5 0.27-94.5 0.55-192.5 0.82-287

Tubing 25#(Thickness 4.8mm) 17#(Thickness 6.4mm) 18# (Thickness 7.9mm)
1-350rpm/min 1.7-595 2.8-980 3.8-1330



  • Flow rate range : 0.000829-1330ml/min
  • Speed range : 0.5-350rpm
  • Speed resolution : 0-100rpm, 0.1rpm; 100-600rpm, 1rpm
  • Testing time range : 0.5sec-999sec
