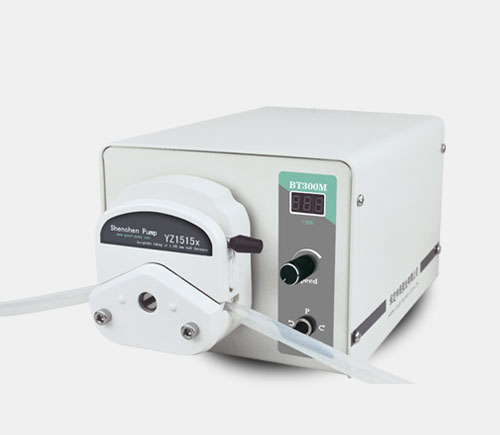

BT300M

튜빙펌프 (Basic Peristaltic Pump) Precision Pump > Peristaltic Pump > ~5L/min
제품설명
  • Basic Peristaltic Pump
  • Flow Rate: 0.00166-1330ml/min
  • Toggle switch 와 디지털 노브를 통한 컨트롤
  • Stepper motor 구동: 0.5-350rpm/min
  • 하우징 재질 선택 가능: PSF(polysulphone material), PPS(polyphenylene sulfide material)
  • RS232, RS485 (MOUBUS protocol RTU mode) communication 인터페이스
  • PC, PLC, HMI 등에 쉬운 연결
  • Maker : INNOFLUID / China
연락처
경기본사 : 031-790-1907 (내선2)




Drive Pump head Tubing size Speed Flow rate(ml/min)
BT300M YZ1515x 13#,14#,19#,16#,25#,17#,18# 1-350rpm 0.07-1330
YZ2515x 15#,24# 1.7-1015
MC1~MC12(10) Diameter: 0.13-3.17mm
Wall thickness: 0.86-1mm
0.00166-49(suggestion working speed<=150rpm)
MC1~MC12(6) 0.00185-65(suggestion working speed<=150rpm)

Tubing 13#(thickness 0.8mm) 14#(thickness 1.6mm) 19#(thickness 2.4mm) 16#(Thickness 3.1mm)
1-350rpm/min 0.07-24.5 0.27-94.5 0.55-192.5 0.82-287

Tubing 25#(Thickness 4.8mm) 17#(Thickness 6.4mm) 18# (Thickness 7.9mm)
1-350rpm/min 1.7-595 2.8-980 3.8-1330
Flow rate range : 0.00166-1330ml/min
Speed range : 1-350rpm
Speed resolution : 0.1rpm when the speed is 0-100rpm, 1rpm when the speed is 100-600rpm
Outlet pressure : 0.1Mpa (0.8-1.0mm wall thickness tubing), 0.1-0.27Mpa (1.6-2.4mm wall thickness tubing)
Back suction angle : 0-360˚
Display : 3 digital LED
Control method : Toggle switch+Rotary encoded switch
Keypad lifetime : 300,000 times
External speed control signal : 0-5V, 0-10V, 4-20mA for option
Start/stop, direction signal : TTL level signal
Communication interface : RS485(optional), Modbus protocol(RTU mode)
Power supply : AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional)
Drive dimension(l*w*h) : 257*185*149(mm)
