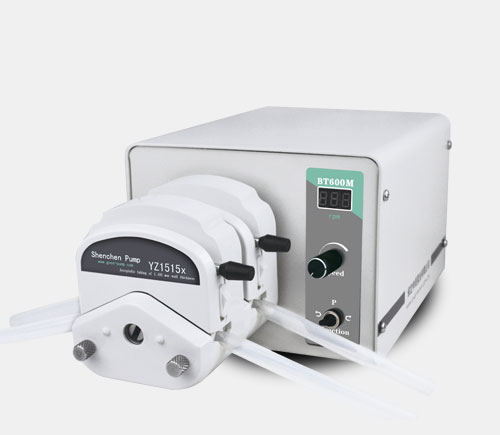

BT600M
튜빙펌프 (Basic Peristaltic Pump) Precision Pump > Peristaltic Pump > ~5L/min- 제품설명
-
- Basic Peristaltic Pump
- Flow Rate: 0.00166-2280ml/min
- Toggle switch 와 디지털 노브를 통한 컨트롤
- Stepper motor 구동: 1-600rpm/min
- 하우징 재질 선택 가능: PSF(polysulphone material), PPS(polyphenylene sulfide material)
- RS232, RS485 (MOUBUS protocol RTU mode) communication 인터페이스
- PC, PLC, HMI 등에 쉬운 연결
- Maker : INNOFLUID / China
- 연락처
- 경기본사 : 031-790-1907 (내선2)
| Drive | Pump head | Tubing size | Speed | Flow rate(ml/min) |
| BT600M | YZ1515x | 13#,14#,19#,16#,25#,17#,18# | 1-600rpm | 0.07-2280 |
| YZ2515x | 15#,24# | 1.7-1740 | ||
| MC1~MC12(10) | Diameter: 0.13-3.17mm Wall thickness: 0.8-1mm |
0.00166-49(suggestion working speed<=150rpm) | ||
| MC1~MC12(6) | 0.00185-65(suggestion working speed<=150rpm) |
| Tubing | 13#(thickness 0.8mm) | 14#(thickness 1.6mm) | 19#(thickness 2.4mm) | 16#(Thickness 3.1mm) |
| 1-600rpm/min | 0.07-42 | 0.27-162 | 0.55-330 | 0.82-492 |
| Tubing | 25#(Thickness 4.8mm) | 17#(Thickness 6.4mm) | 18# (Thickness 7.9mm) |
| 1-600rpm/min | 1.7-1020 | 2.8-1740 | 3.8-2280 |
| Flow rate range : 0.00166-1330ml/min |
| Speed range : 1-350rpm |
| Speed resolution : 0.1rpm when the speed is 0-100rpm, 1rpm when the speed is 100-600rpm |
| Outlet pressure : 0.1Mpa (0.8-1.0mm wall thickness tubing), 0.1-0.27Mpa (1.6-2.47mm wall thickness tubing) |
| Back suction angle : 0-360˚ Display : 3 digital LED |
| Control method : Toggle switch+Rotary encoded switch |
| Keypad lifetime : 300,000 times |
| Speed control : Rotary encoded swithch |
| External speed control signal : 0-5V, 0-10V, 4-20mA for option |
| Start/stop, direction signal : TTL level signal |
| Communication interface : RS485(optional), Modbus protocol(RTU mode) |
| Power supply : AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional) |
| Drive dimension(l*w*h) : 257*185*149(mm) |
| Drive weight : 4.64kg |
| Power consumption : <50W |
| Condition temperature : 0-40℃ |
| Relative humidity : <80% |
| IP rate : IP31 |
