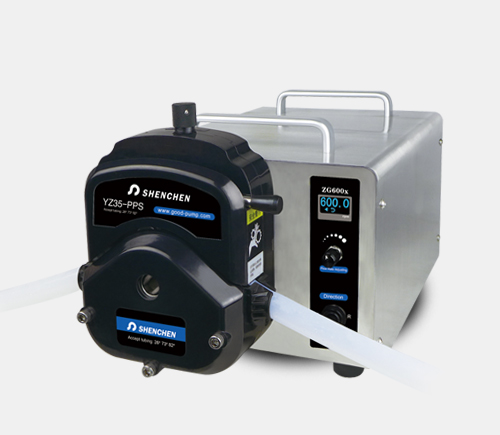

- 고전력 DC 모터 드라이브, 강력한 전력을 사용하여 두 개의 펌프 헤드를 구동할 수 있습니다.
- 대유량에 적합합니다. 조작이 쉽고 경제적이며 내구성이 뛰어납니다.
- 대유량 또는 고압 적용에 적합한 스테인레스 스틸 하우징.

Drive	Pump head	Tubing size	Speed	Flow rate(ml/min)
ZG600x	YZ35, YZ35PPS	23#, 73#, 82#	60-600rpm	414-12000
	2-Y35, 2-YZ35PPS	23#, 73#, 82#		(each channel)414-12000



Pump head	Tubing	ID*Wall thickness(mm)	ml/r	Flow rate(ml/min) (0.1-600rpm)	Tubing max. pressure(Mpa)		Material/Weight(kg)
					Intermittent	Continuous	Aluminum alloy	PPS
	26#	6.4*3.3	6.9	<4200	0.27	0.2	4.36	1.5
YZ35	73#	9.6*3.3	12.3	<7400	0.27	0.2
	82#	12.7*3.3	20	<12000	0.14	0.1

Flow rate range: 414-12000ml/min
Speed range: 60-600rpm
Rotation direction: reversible
Speed resolution: 1rpm
Flow rate accuracy: <±0.5%
Outlet pressure: 0.3Mpa
Motor type: DC motor
Display: 4 bit LED shows the current speed
Speed control: Multiturn potentiometer control motor speed
External speed control signal: 0-5V, 0-10V, 4-20mA for option
Power supply: AC 220V±10% 50Hz/60Hz(standard), AC 110V±10% 50Hz/60Hz(optional)
Drive dimension: 325*236*193mm(l*w*h)
Drive weight: 17.0kg
Power consumption: <300W
Condition temperature: 0-40℃
Relative humidity: <80%
IP rate: IP31
