KF300

튜빙펌프 (Desktop Filling System) Precision Pump > Peristaltic Pump > Filling System
제품설명

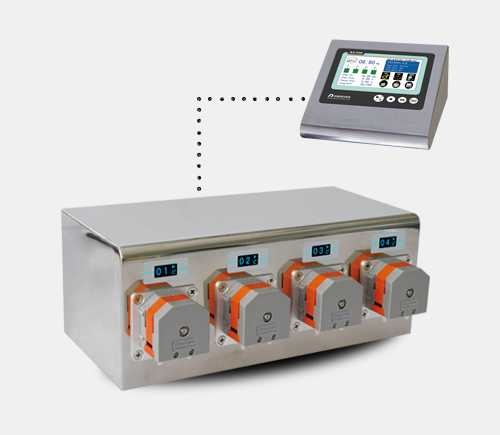

  • Filling system (Intelligent type)
  • Flow Rate: 0.25-190ml/min
  • Integrated design, 컨트롤러를 통해 32 unit 까지 제어 가능
  • 4.3" LCD 터치 스크린 컨트롤
  • Filling volume, filling time, pause time, repeat number, back suction angle 설정 가능
  • Desktop 용도에 맞는 컴팩트 사이즈
  • Maker : Shenchen / China
연락처
경기본사 : 031-790-1907 (내선2)

CATALOGUE #1 DOWNLOAD
- 통합 설계로 컨트롤러는 1-32개 장치를 제어할 수 있습니다.
- 컴팩트한 구조, 컴팩트한 크기, 아름다운 외관 및 공간 절약.
- 실험실에서 고정밀 미세 액체를 충전하는 데 적합합니다.



Speed range 1-300rpm Control mode Touch screen and Mechanical keypad
Filling volume 0.01-9999.99ml Start/stop,
direction signal		 Passive switch signal, such as : foot
Dispensing time 0.1-9999.99s pedal switch; Active swtich signal
Interval time 0.1-9999.99s 5V, 12V, 24V for options
Volume resolution 0.01ml Output interface Output motor working status
Time resolution 0.01s (Open-collector output)
Copy numbers 1-9999 times, 0 represent Communication interface RS485 support Modbus protocol
unlimited (RTU mode)
Back suction angle 0-360˚ Power supply AC 220V ±10% 50Hz/60Hz(standard)
Filling accuracy <±0.5% AC 110V ±10% 50Hz/60Hz(optional)
Filling units 1-32units Condition temperature 0-40℃
Display 4.3" industrial grade - color LCD display Relative humidity <80%
Keypad lifetime 300,000 times IP rate IP31
