GL Screw Joints
GL 나사 조인트 Consumable > Fitting > GL Thread Fitting- 제품설명
-
- GL Thread에 사용 가능한 피팅
- 내화학성이 우수한 ETFE, PTFE 재질
- 사용 가능 압력 : 10 bar
- 사용 가능 온도 : -50 ~ 150 ℃
- Maker: Bohlender
- 연락처
- 경기본사 : 031-790-1907 (내선2)
| Material | Temperature resistance | Chemical resistance | Pressure | Vacuum |
| PTFE, ETFE | from -50℃ to +150℃ | +++universal | 10bar | suitable |

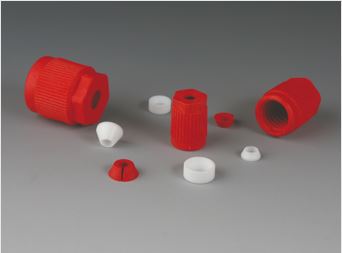

Product description : Red screw cap made of glass-fibre reinforced ETFE, inner parts consisting of a v-ring (ETFE),
a tapered ring and a sealing ring (both PTFE) as well as an o-ring (for tubing diameters under 3 mm, notexposed to the medi- um).
Very good chemical resistance, suitable for temperatures from-50°C to +150°C.
| For tubing O.D mm |
Thread GL14 | Thread GL18 | Thread GL25 | |
| 1/32" | 0.8 | D593-02 | ||
| 1.0 | D593-04 | |||
| 1/16" | 1.6 | D593-06 | D593-26 | |
| 2.0 | D593-10 | D593-30 | ||
| 2.4 | D593-12 | |||
| 3.0 | D590-02 | D590-10 | D590-22 | |
| 1/8" | 3.2 | D590-08 | D590-20 | D590-24 |
| 4.0 | D590-04 | D590-12 | D590-26 | |
| 6.0 | D590-06 | D590-14 | D590-28 | |
| 1/4" | 6.35 | D590-62 | ||
| 8.0 | D590-16 | D590-30 | ||
| 10.0 | D590-18 | D590-32 | ||
| 12.0 | D590-34 | |||
| 14.0 | D590-36 | |||
