Replacement Inner Part
교체용 내부 부품 Consumable > Fitting > GL Thread Fitting- 제품설명
-
GL Screw Joints 교체용 내부 부품

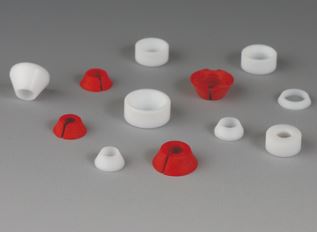

Sealing ring, Tapered ring, V-ring
Maker: Bohlender
- 연락처
- 경기본사 : 031-790-1907 (내선2)
- Material : PTFE, ETFE
- Temperature resistance : -50℃~+150℃
- Chemical resistance : +++universal
- Pressure : 10 bar
- Vacuum : Suitable
- product description : Consisting of a v-ring(ETFE), a tapered ring and a sealing ring (both PTFE)
as well as an o-ring for tubing diameters under 3mm (not exposed to the medium)
Very good chemical resistance, suitable for temperatures from -50℃ to +150℃
- Temperature resistance : -50℃~+150℃
- Chemical resistance : +++universal
- Pressure : 10 bar
- Vacuum : Suitable
- product description : Consisting of a v-ring(ETFE), a tapered ring and a sealing ring (both PTFE)
as well as an o-ring for tubing diameters under 3mm (not exposed to the medium)
Very good chemical resistance, suitable for temperatures from -50℃ to +150℃
| For tubing O.D mm |
Thread GL14 | Thread GL18 | Thread GL25 | |
| 1/32" | 0.8 | D598-02 | ||
| 1.0 | D598-04 | |||
| 1/16" | 1.6 | D598-06 | D598-26 | |
| 2.0 | D598-10 | D598-30 | ||
| 2.4 | D598-12 | |||
| 3.0 | D597-02 | D597-10 | D597-22 | |
| 1/8" | 3.2 | D597-08 | D597-20 | D597-24 |
| 4.0 | D597-04 | D597-12 | D597-26 | |
| 6.0 | D597-06 | D597-14 | D597-28 | |
| 1/4" | 6.35 | D597-62 | ||
| 8.0 | D597-16 | D597-30 | ||
| 10.0 | D597-18 | D597-32 | ||
| 12.0 | D597-34 | |||
| 14.0 | D597-36 | |||
