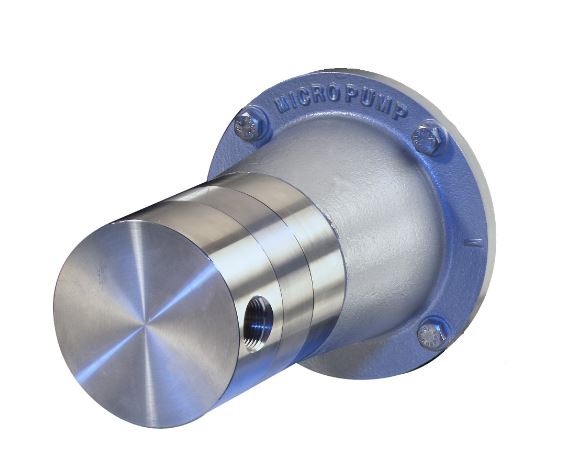

GNH Head
기어펌프헤드 Precision Pump > Gear Pump > ~43L/min- 제품설명
-
- Flow rate : 12.25 ~ 42.8 L/min
- 100 psi (6.9 bar) Differential Pressure
- 1,500 psi (103 bar) System Pressure
- 맥동이 없는 유체이송 (고압용)
- 다양한 Drive와 재질 선택 가능
- Maker : Micropump / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
- Cavity Style Pumps
- 작은 크기
- 누출 없음
- Smooth Pulseless Delivery
- 내화학성
- 서비스 용이
- 높은 시스템 압력 성능
- 다양한 옵션 및 구성
- 혁신적인 디자인
- 안전기관 인증
| Performance summary | |
| Flow rate at 1,750 rpm | 42,875mL/min (11.38 gpm) |
| Displacement | Gear set : G35 mL/rev : 24.5 |
| Maximum rated differential pressure | 100psi (6.9bar) |
| Maximum rated system pressure | 1,500psi (103bar) |
| Temperature range | -46-121℃(-50-250℉) |
| Viscosity range | 0.2-2,500 cps |
| Maximum speed | 1,750rpm |
| Pump construction | -Magnetic drive gear pump -Cavity style -Three helical, shafted gears -O-ring seals |
| Wetted materials | |
| Base material | 316 stainless steel and titanium |
| Gears | -PEEK™ -PTFE |
| Static seals | -Viton® -PTFE |
| Magnets | |
| Driven and driving | Rare earth |
