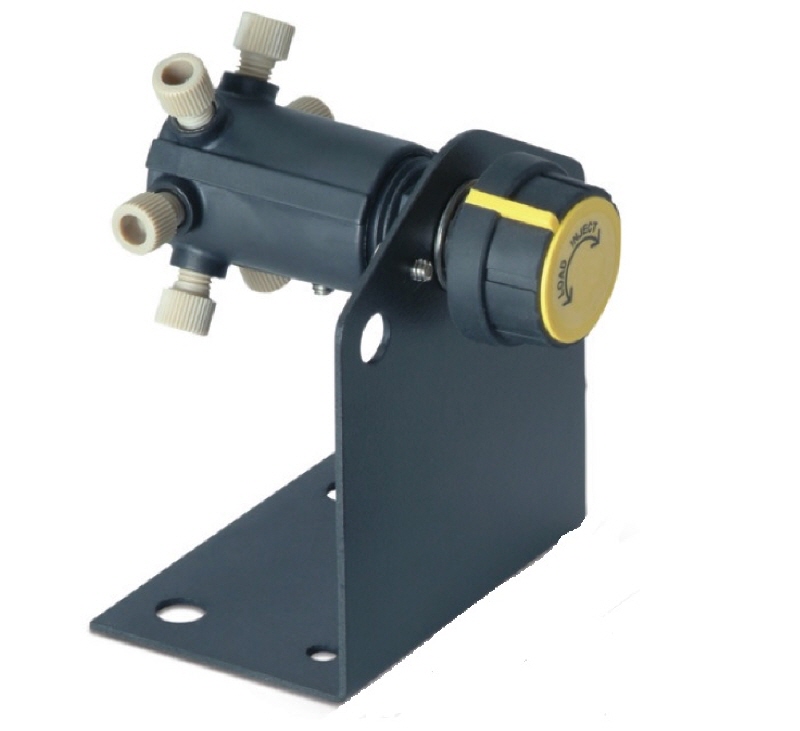

Medium Pressure Manual Valve

매뉴얼 인젝션 밸브
(Medium Pressure) Consumable > Valve > Manual Valve
제품설명
  • 액체가 이동하는 라인은 Biocompatible한 수동 밸브 (스위칭, 인젝션, 셀렉션)
  • 밸브 종류별 500psi 또는 1,000psi까지 사용 가능
  • 사용 가능한 Tubing : 1/16”, 1/8" OD 튜빙
  • Maker : IDEX / USA
연락처
경기본사 : 031-790-1907 (내선1)
대전지사 : 042-824-5167

CATALOGUE #1 DOWNLOAD
　 P/N Description Tubing/Fitting size wetted Material Configuration Includes Qty
Switching V-100D 4-Position, 4-port, 500psi(34 bar) 1/4-28 Ports for 1/16" OD tubing PEEK, PTFE Double Diagonal * ea
V-101D 4-position, 4-port, Bulkhead, 500 psi(34 bar) 1/4-28 Ports for 1/16" OD tubing PEEK, PTFE Double Diagonal * ea
V-100L 4-position, 4-port, 500 psi(34 bar) 1/4-28 Ports for 1/16" OD tubing PEEK, PTFE Right-Angel"L" ** ea
V-101L 4-position, 4-port, Bulkhead, 500 psi(34 bar) 1/4-28 Ports for 1/16" OD tubing PEEK, PTFE Right-Angel"L" ** ea
V-100T 4-position, 4-port, 500 psi(34 bar) 1/4-28 Ports for 1/16" OD tubing PEEK, PTFE Single "T" *** ea
V-101T 4-position, 4-port, Bulkhead, 500 psi(34 bar) 1/4-28 Ports for 1/16" OD tubing PEEK, PTFE Single "T" *** ea
Injction For injection,
add the appropriately
sized sample loop to
the Switching valves.		 V-450 2-Position, 6-port, 1,000psi (69 bar) 1/4-28 Ports for 1/16" OD tubing Polymide, PTFE Injection (6)XP-235 ea
V-451 2-position, 6-port, Bulkhead Bersion, 1,000 psi (69 bar) 1/4-28 Ports for 1/16" OD tubing Polymide, PTFE Injection (6)XP-235 ea
V-540 2-Position, 6-port, 1,000psi (69 bar) 1/4-28 Ports for 1/8" OD tubing Polymide, PTFE Injection (6)XP-335 ea
V-541 2-position, 6-port, Bulkhead Bersion, 1,000 psi (69 bar) 1/4-28 Ports for 1/8" OD tubing Polymide, PTFE Injection (6)XP-335 ea
Selection V-240 6-position, 7-port, 1,000 psi (69 bar) 1/4-28 Ports for 1/16" OD tubing Polymide, PTFE Muliti-port Selection (6)XP-235 ea
V-241 6-position, 7-port, Bulkhead Version, 1,000 psi(69bar) 1/4-28 Ports for 1/16" OD tubing Polymide, PTFE Muliti-port Selection (6)XP-235 ea
V-340 6-position, 7-port, 1,000 psi (69 bar) 1/4-28 Ports for 1/8" OD tubing Polymide, PTFE Muliti-port Selection (6)XP-335 ea
V-341 6-position, 7-port, Bulkhead Version, 1,000 psi(69bar) 1/4-28 Ports for 1/8" OD tubing Polymide, PTFE Muliti-port Selection (6)XP-335 ea
  * (4) P-218BLK, (4) P-240
  **  (4) P-218BLK, (4) P240, (1) P-309
  ***  (4) P-218BLK, (4) P240, (1) P-309
  • PEEK Sample Loop
