Micro Splitter Valves
마이크로 스플리터 밸브 Consumable > Valve > Splitter Valve- 제품설명
-
- 유입되고 있는 액체를 Vent 시켜 유량을 조절할 수 있는 Micro Splitter Valve
- LC/MS System에 이용
- Medium / High Pressure 용
- Maker : IDEX / USA
- 연락처
-
경기본사 : 031-790-1907 (내선1)
대전지사 : 042-824-5167
| P/N | Valve type | Threads | Internal Volume1 (closed/fully open) |
Max.Operating pressure |
| P-450 | Standard | 2001-04-28 | 2.1/4.1μL | 800psi(55 bar) |
| P-451 | Standard | 10-32 | 1.2/2.8μL | 800psi(55 bar) |
| P-460S, T | High pressure | 10-32 | 1.2/2.8μL | 4,000psi(276bar) |

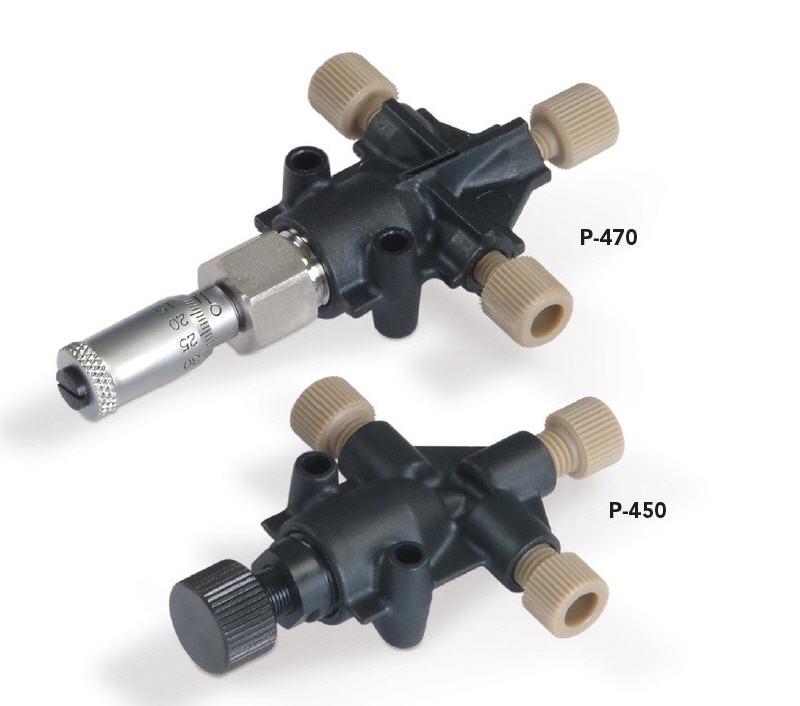

| P-470 | High pres. Graduated | 10-32 | 1.2/2.8μL | 4,000psi(276bar) |
| P/N | Description | Includes |
| MICRO-SPLITTER VALVES | ||
| P-450 | Standard, 1/4-28, Biocompatible | (3)XP-235 |
| P-451 | Standard, 10-32, Biocompatible | (3)F-120 |
| P-460S | High pressure, 10-32, with stainless steel needle | (3)F-120 |
| P-460T | High pressure, 10-32, with titanium needle | (3)F-120 |
| STANDARD 1/4-28 INCLINE CHECK VALVES | ||
| P-470 | High pressure graduated, 10-32, with stainless steel needle |
(3)F-120 |
