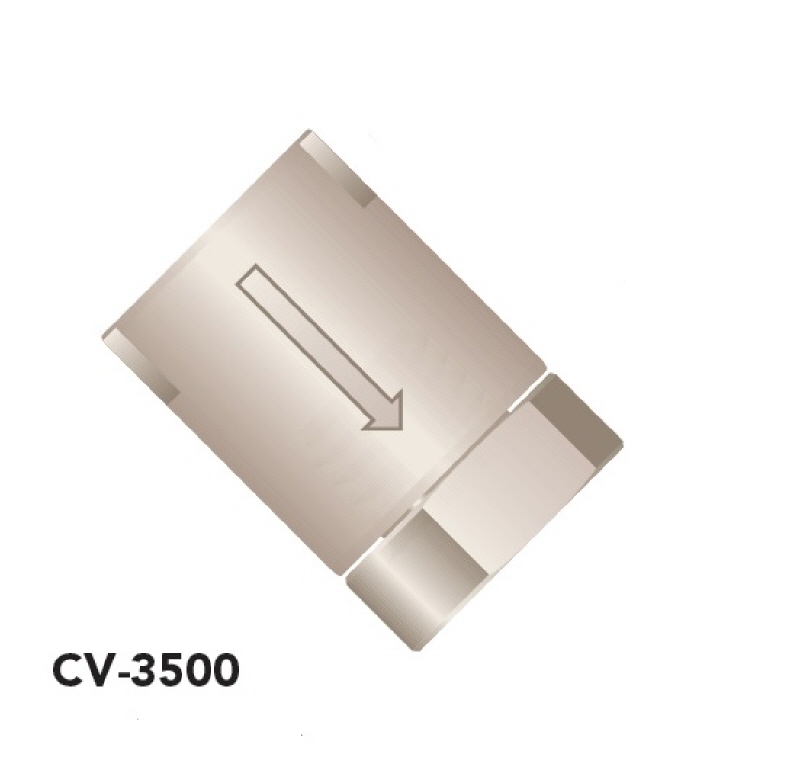

10-32 Inline Check Valves
인라인 체크밸브 Consumable > Valve > Check Valve- 제품설명
-
- 양쪽에 10-32 Female을 가지고 있는 체크밸브
- 화살표 방향으로만 액체가 흐름
- Cracking pressure : 8 psi (0.6 bar)
- 재질 : PEEK, perfluoroelastomer
- Maker : IDEX / USA
- 연락처
-
경기본사 : 031-790-1907 (내선1)
대전지사 : 042-824-5167
*Specifications&Details
| Swept volume | Thru-Hole | Max. Pressure rating | Back pressure created |
Cracking pressure tolerance |
|
| Standard 1/4-28 FB | |||||
| CV-3301,CV-3302 | 20μL | 0.020"(0.50mm) | 2,000psi(138bar) | 45psi (3.1bar) | ±5psi (0.34bar) |
| CV-3315,CV-3316 | 16μL | 0.020"(0.50mm) | 2,000psi(138bar) | 10psi (0.7bar) | ±1.5psi (0.10bar) |
| Nonmetallic 10-32 Coned micro-volume | |||||
| CV-3500 | 7.4μL | 0.010"(0.25mm) | 3,000psi(207bar) | 25psi (1.7bar) | ±5psi (0.34bar) |
| P/N | Description | Cracking pressure |
| NONMETALLIC 10-32 MICRO-VOLUME INLINE CHECK VALVE | ||
| CV-3500 | Inlet/Outlet check valve, 10-32C, F to 10-32C, F* | 8psi (0.6bar) |
