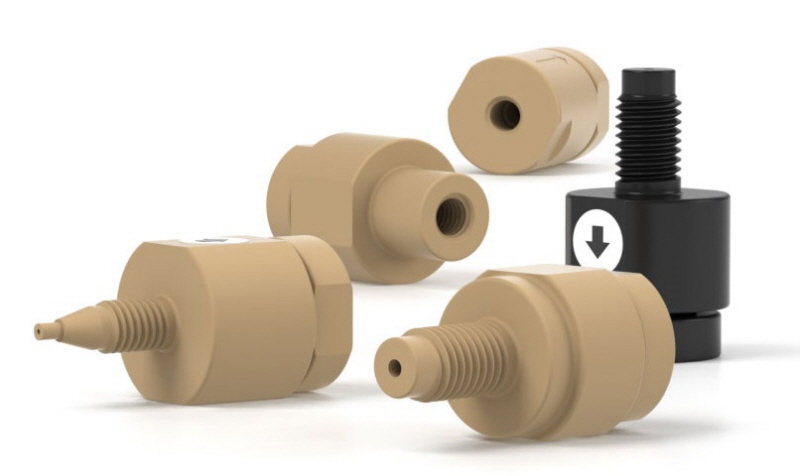

Nonmetallic 1/4-28 and 10-32 Inline Check Valves
Non-metallic 체크밸브 Consumable > Valve > Check Valve- 제품설명
-
- Non-metallic 체크밸브로 1/4-28 또는 10-32 나사산이 있음
- 화살표 방향으로만 액체가 흐름
- 재질 : PEEK, perfluoroelastomer
- Maker : IDEX / USA
- 연락처
-
경기본사 : 031-790-1907 (내선1)
대전지사 : 042-824-5167
| *Specifications | ||||
| Swept volume |
Max. pressure rating |
Back pressure created |
Cracking pressure tolerance |
|
| CV-3320, CV-3321 | 37μL | 2,000psi (138bar) | 30psi (2.1bar) | ±0.5 psi(0.03 bar) |
| CV-3330 | 34μL | 2,000psi (138bar) | 30psi (2.1bar) | ±0.5 psi(0.03 bar) |
| CV-3335, CV-3336 | 49μL | 2,000psi (138bar) | 30psi (2.1bar) | ±0.5 psi(0.03 bar) |
| CV-3340 | 34μL | 2,000psi (138bar) | 30psi (2.1bar) | ±0.5 psi(0.03 bar) |
| CV-3322, CV-3323 | 49μL | 2,000psi (138bar) | 30psi (2.1bar) | ±0.5 psi(0.03 bar) |
| CV-3324, CV-3325 | 182μL | 2,000psi (138bar) | 30psi (2.1bar) | ±0.5 psi(0.03 bar) |
| Nonmetallic 1/4-28 and 10-32 incline check valves | |||
| CV-3320 | Inlet check valve, 1/4-28 FB, M to 1/4-28 FB, F* | 1 psi (0.07bar) | 0.020"(0.50mm) |
| CV-3321 | Outlet check valve, 1/4-28 FB, M to 1/4-28 FB, F* | 1 psi (0.07bar) | 0.020"(0.50mm) |
| CV-3322 | Inlet check valve, 1/4-28 FB, M to 1/4-28 FB, F* | 1 psi (0.07bar) | 0.040"(1.0mm) |
| CV-3323 | Outlet check valve, 1/4-28 FB, M to 1/4-28 FB, F* | 1 psi (0.07bar) | 0.040"(1.0mm) |
| CV-3324 | Inlet check valve, 1/4-28 FB, M to 1/4-28 FB, F* | 1 psi (0.07bar) | 0.060"(1.60mm) |
| CV-3325 | Outlet check valve, 1/4-28 FB, M to 1/4-28 FB, F* | 1 psi (0.07bar) | 0.060"(1.60mm) |
| CV-3330 | Inlet/Outlet check valve, 1/4-28 FB, F to 1/4-28FB, F* | 1 psi (0.07bar) | 0.020"(0.50mm) |
| CV-3335 | Inlet check valve, 1/4-28 FB, F to 10-32 C, M* | 1 psi (0.07bar) | 0.020"(0.50mm) |
| CV-3336 | Outlet check valve, 1/4-28 FB, F to 10-32 C, M* | 1 psi (0.07bar) | 0.020"(0.50mm) |
| CV-3340 | Inlet/Outlet check valve, 10-32C, F to 10-32 C, F* | 1 psi (0.07bar) | 0.020"(0.50mm) |
